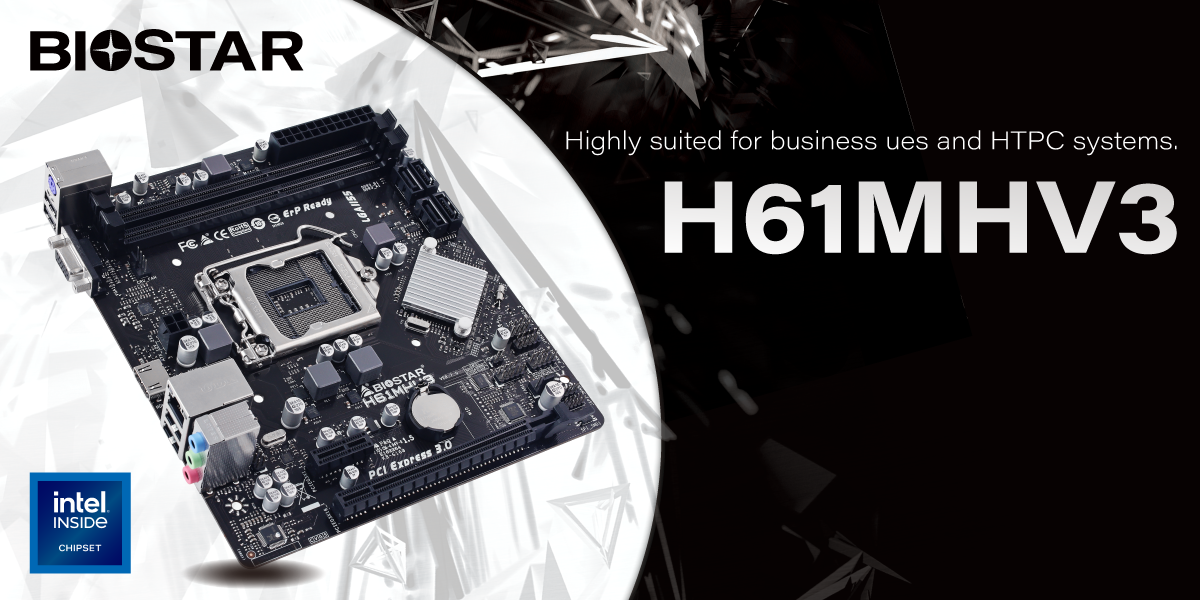

BIOSTAR, a leading brand of motherboards, graphics cards, and storage devices today, announces a refresh of their Intel H61MH series with the new H61MHV3 motherboard.

Designed based on Intel’s H61 single chip architecture, the new H61MHV3 motherboard from BIOSTAR breathes a fresh breath of life to older 2nd and 3rd generation processors from Intel.

Biostar Announces The H61MHV3 Motherboard
Biostar Announces The H61MHV3 Motherboard

Highly suited for business use and HTPC systems, the H61MHV3 motherboard comes with BIOSTAR’s promised product reliability and long-lasting performance. It is capable of supporting up to 16GB of DDR3 memory across 2 DIMM slots. USB 2.0 support with 8 USB ports provided with the motherboard for ease of use.

Engineered to work well with Core i3, i5, i7, Pentium, and Celeron processors, the motherboard is designed with the latest components to provide smooth unhindered performance across all its components.

The H61MHV3’s rear I/O panel consists of a single x PS/2 Keyboard/Mouse port for users looking to connect their old keyboard or mouse to the system, Dual-display output capability with   1 x VGA port, and an HDMI port that expresses bright and highly detailed content.

Furthermore, it comes equipped with a single LAN port powered by Realtek RTL8111H chipset, 4 x USB 2.0 ports, and 3 x Audio out ports run by ALC897 audio codec capable of handling 7.1 Channels of High Definition Audio.

BIOSTAR’s new H61MHV3 motherboard brings new hope for people with older components to last longer, essentially saving money and time. It works well for business and casual use for multitudes of use cases.

Key Features

DDR3 Memory

DDR3 Memory
DDR3 Memory
  • Provides higher operating performance and lower voltage than DDR2 SDRAM

PCIe 3.0

PCIe 3.0
PCIe 3.0
  • Carries a bit rate of 8GT/s
  • Enhances signal and data integrity
  • Increases channel improvement

HDMI

HDMI
HDMI
  • Enjoy TV shows and movies online
  • Fills the entire screen with lifelike images
  • Expresses bright and highly detailed content

HD AUDIO

HD AUDIO
HD AUDIO
  • Multi-streaming: Multi-channel audio output and input
  • Jack Retasking: Automatically switch the internal audio source line
  • Better than AC’ 97 sound quality

OC.OV.OH

OC.OV.OH
OC.OV.OH
  • More stable power management

Spec table:

Model H61MHV3
Chipset Intel® H61
CPU SUPPORT Support Intel® Core™ i7/ i5/ i3 processors and Intel® Pentium® processors/ Intel® Celeron® processors
in the LGA1155 package
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY Supports Dual Channel DDR3 1066/ 1333/ 1600
2 x DDR3 DIMM Memory Slot, Max. Supports up to 16 GB Memory
Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 module
* DDR3 1600 memory module (depending on CPU)
* Please refer to www.biostar.com.tw for Memory support list.
STORAGE 4x SATA II (3Gb/s)
LAN Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC897
7.1 Channels, High Definition Audio
USB 8x USB 2.0 port (4 on rear I/Os and 4 via internal headers)
EXPANSION SLOT 1x PCIe 2.0 x1
1x PCIe 3.0 x16 Slot (x16 mode, depending on CPU)
REAR I/O 1x PS/2 Keyboard / Mouse
1x VGA Port
1x HDMI Port
4x USB 2.0 Port
1x LAN port
3x Audio Jack
INTERNAL I/O 4x SATA II (3Gb/s)
2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x 4-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Internal Stereo Speaker Header
1x Clear CMOS Header
1x COM Port Header
DIMENSION uATX Form Factor, 191 mm x 170 mm
OS SUPPORT Windows 7/ 8/ 8.1/ 10
Biostar reserves the right to add or remove support for any OS with or without notice.
ACCESSORIES 2 x SATA Cable
1 x Rear I/O Panel for ATX Case
1 x Quick Guide
1 x DVD Driver
