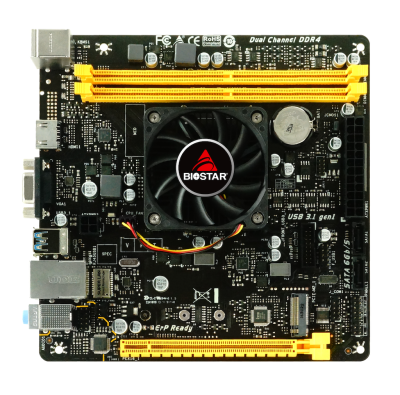

BIOSTAR, a leading manufacturer of motherboards, graphics cards, and storage devices, is proud to present the version 6.1 of the critically acclaimed A10N-8800E SoC Mini-ITX motherboard. Introduced as a solution for edge computing almost a year ago, the BIOSTAR A10N-8800E, equipped with an AMD FX-8800P quad-core processor, offers rapid data access and computing over traditional cloud solutions, and now with even faster performance thanks to the V6.1 featuring an improved heatsink for more efficient thermal management. With its collection of awards, the BIOSTAR A10N-8800E has proven to be an excellent motherboard for edge computing applications for home, office or online gaming offering power efficiency, high performance, and affordability under the small form factor.

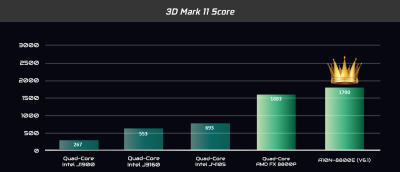

With it’s revisited CPU heatsink and bigger fan, the A10N-8800E V6.1 brings considerable performance improvements to the table. Under improved thermal management, the AMD FX-8800P is able to generate scores above the competition equivalent platform, while maintaining temperatures well below 70°C.

With its Carrizo architecture AMD FX-8800P quad-core processor and integrated AMD Radeon R7 Graphics, the A10N-8800E offers the processing performance, power efficiency and graphics to make the ideal home PC. The A10N-8800E is built to support up to 32GB of DDR4 memory at speeds of 2133MHz and is equipped with an M.2 port with 16Gbps bandwidth for high-performance PCIe NVMe M.2 SSDs.

Feature Highlights


Expresses bright and highly detailed content that fills the entire screen with life-like images. The onboard HDMI connector, with its industry-leading high definition video quality, allows full video and audio support for you to enjoy TV shows and movies online such as YouTube or Netflix.

DDR4 Memory

DDR4 Memory delivers higher performance, higher DIMM capacities, improved data integrity, and lower power consumption. Raising up to 32GB maximum capacity and 2133(OC) MHz of DDR4 memory for multi-applications and better performance.

PCIe M.2

PCIe M.2 16Gb/s is the latest storage interface, it delivers the highest bandwidth and lower latency. Its 1.6 times faster compared with PCIe M.2 10Gb/s.

USB 3.1 Gen1 Port

Experience Fastest data transfers at 5 Gbps with USB 3.1 Gen 1–the new latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.1 Gen 1 transfers data 10X faster and backward compatible with previous USB 2.0 components.

Super LAN Surge Protection

Super LAN Surge Protection provides LAN port with more advanced antistatic protection capabilities by adding an integrated chip to strengthen electrical stability and prevent damage from lightning strikes and electrical surges.

The BIOSTAR A10N-8800E V6.1 rear I/O features: 1 x PS/2 Keyboard,1 x PS/2 Mouse, 2 x USB 3.1 Gen1 (5Gb/s) Ports, 2 x USB 2.0 Ports, 1 x HDMI Port, 1 x VGA Port, 1 x GbE LAN port and 3 x Audio Jacks.

The building block of edge computing

The version 6.1 of the BIOSTAR A10N-8800E is a powerful edge computing solution for home applications while also being able to run the most common household needs in an everyday PC. And as a mini-ITX form factor and a power-efficient SoC, the A10N-8800E will blend in seamlessly.



AMD Carrizo


AMD FX-8800P Processor

(Quad core up to 3.4GHz)


Supports Dual Channel DDR4 2133(OC) MHz

2 x DDR4 DIMM Memory Slot

Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8/ 16 GB DDR4 module

*Please refer to for Memory support list.


AMD Radeon™ R7 Graphics

Supports HDCP


2 x SATA3 Connectors (6Gb/s)

1 x M.2 Key M 16Gb/s Connector: Supports PCI-E & SATA SSD


Realtek RTL8111H – 10/100/1000Mb/s Controller

Supports Super LAN Surge Protection


Realtek ALC887 8-Channel HD Audio

Supports HD Audio


4 x USB 3.1 Gen1 Ports (2 on rear I/Os and 2 via internal headers)

4 x USB 2.0 Ports (2 on rear I/Os and 2 via internal headers)


1 x PCI-E 3.0 x16 Slot


1 x PS/2 Mouse

1 x PS/2 Keyboard

2 x USB 3.1 Gen1 Ports

2 x USB 2.0 Ports

1 x HDMI Connector, resolution up to 4096 x 2160@24Hz, compliant with HDMI 1.4

1 x VGA Port, resolution up to 1920 x 1200 @60Hz

1 x LAN port

3 x Audio Jacks


1 x USB 3.1 Gen1 Header (each header supports 2 USB 3.1(Gen1) ports)

1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

2 x SATA3 6Gb/s Connectors

1 x Front Audio Header

1 x Front Panel Header

1 x CPU Fan Connector

1 x System Fan Connector

1 x 4-Pin Power Connector

1 x 24-Pin Power Connector

1 x Clear CMOS Header

1 x COM Port Header


CPU / System 1 Temperature Monitoring

CPU / System Fan Monitoring

System Fan Monitoring

Smart / Manual CPU(DC FAN) Fan Control

CPU/DDR Voltage Monitoring


Mini ITX Form Factor Dimension: 17 cm x 17 cm ( W x L )


Supports Windows 7 x86/x64, Windows 8.1 x64, Windows 10 x64

*Biostar reserves the right to add or remove support for any OS with or without notice.



Smart Speed LAN


2 x SATA Cables

1 x I/O Shield

1 x DVD Driver

1 x Quick Guide


Supports BIOS-Flasher
