September 30, 2020

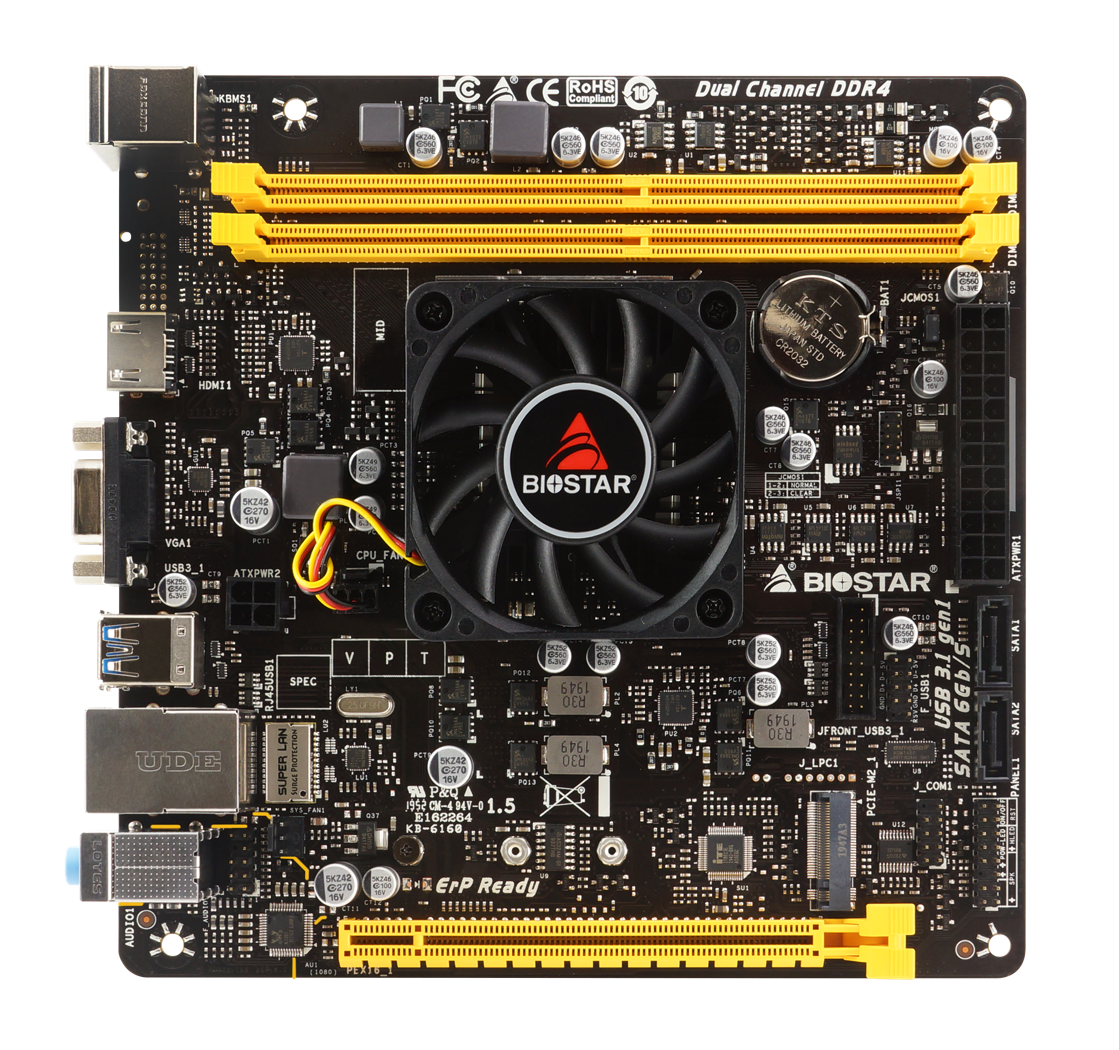

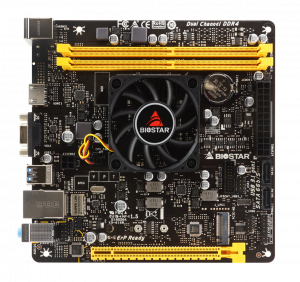

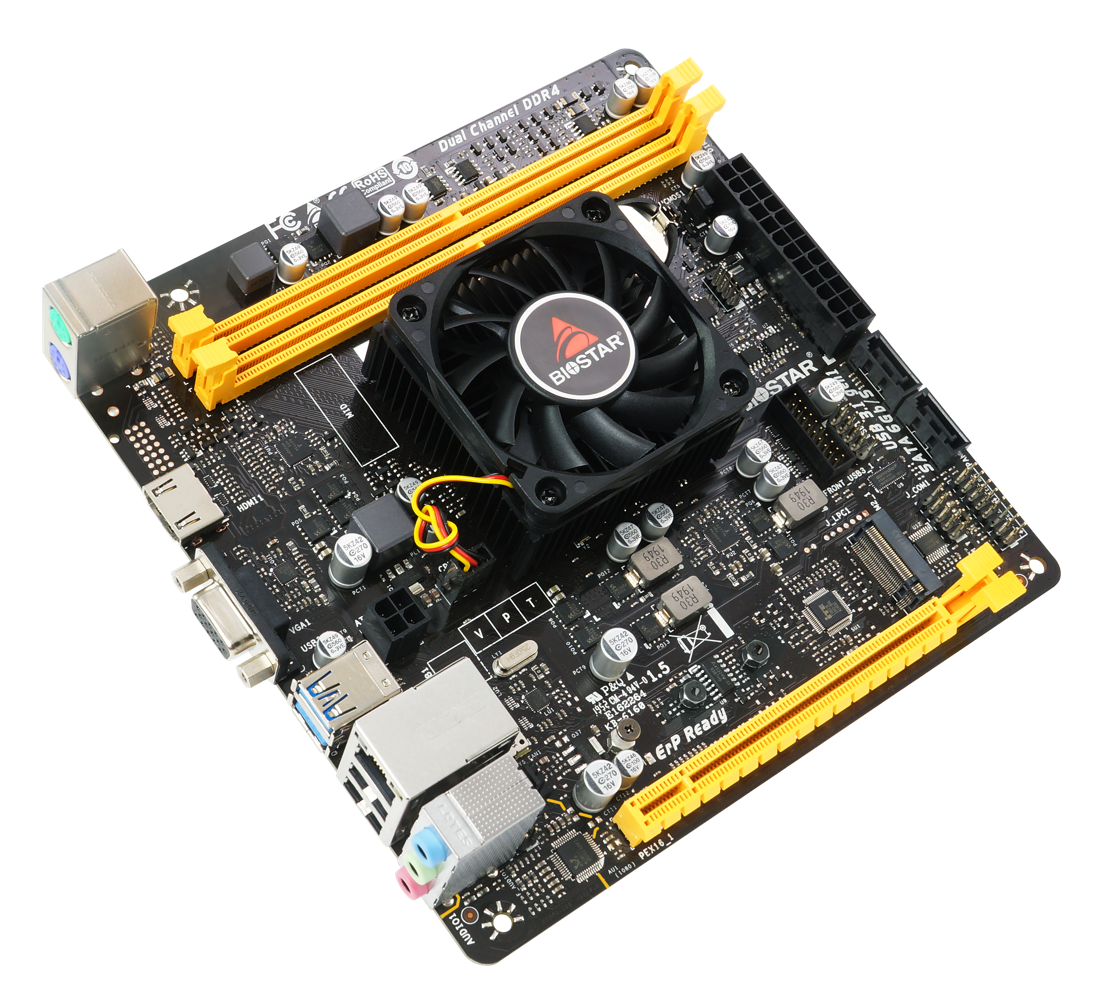

BIOSTAR ANNOUNCES THE A10N-9630E MINI ITX Quad Core SoC MOTHERBOARD

BIOSTAR, a leading brand of motherboards, graphics cards, and storage devices, today unveils the A10N-9630E motherboard with built-in AMD Bristol Ridge, 7th generation processor.

BIOSTAR has been a manufacturer of robust and highly reliable motherboards for many years and has a wide range of models on both Intel and AMD platforms to choose from and a plethora of supplementary components catering to many user preferences.

Designed in the Mini-ITX form factor, the new BIOSTAR A10N-9630E motherboard is built with form and functionality to rival everything else in the market. With an inbuilt AMD A10-9630P quad-core processor and support for AMD Radeon™ R5 graphics, the BIOSTAR A10N-9630E is sleek, reliable and affordable suited for consumers who like to run basic tasks such as browsing the web, sending emails and running office applications and is perfect for many industrial applications because its ultra-small Mini-ITX form factor suited for small builds that save office space creating a neat, tidy workspace. The A10N-9630E motherboard is also designed for edge computing with better performance and low power consumption.

The BIOSTAR A10N-9630E motherboard comes equipped with dual-slot DDR4 memory lanes that support up to 32GB of 2400MHz DDR4 memory to deliver high performance, high DIMM capacities, improved data integrity and lower power consumption for multi-applications and better performance. Super LAN Surge Protection, providing LAN with more advanced antistatic protection capabilities by adding an integrated chip to strengthen electrical stability and prevent damage from lightning strikes and electrical surges. PCIe M.2 16Gb/s is the latest storage interface, it delivers the highest bandwidth and lower latency. It’s 1.6 times faster compared with PCIe M.2 10Gb/s and HDMI that provides high definition video output for a more immersive user experience to watch TV shows, movies and online content such as YouTube or Netflix through with high definition crystal clear quality.

BIOSTAR is well known for their reliable SoC motherboards throughout the years and the A10N-9630E motherboard is no exception with its all in one package that includes the CPU, GPU and a cooler already built in to this small, sleek form factor design that will power up PC builds with multitudes of industrial application possibilities and will be the affordable choice for consumers who are on a budget but still want the best technology in the market.

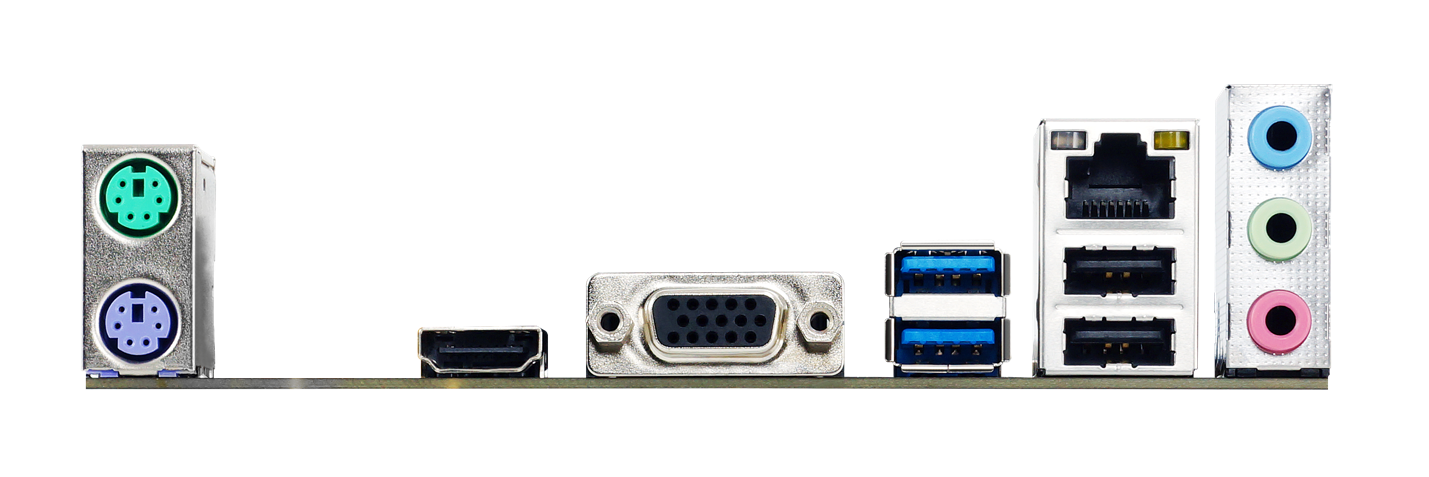

A sleek rear I/O panel

The BIOSTAR A10N-9630E features: 1 x PS/2 Mouse, 1 x PS/2 Keyboard, 1 x VGA Port, 1 x HDMI Port, 1 x GbE LAN Port, 2 x USB 3.2 Gen1 Ports, 2 x USB 2.0 Ports, 3 x Audio Jack


Key Features
DDR4

DDR4 Memory delivers higher performance, higher DIMM capacities, improved data integrity and lower power consumption. Raising up to 32GB maximum capacity and 2400MHz of DDR4 memory for multi-applications and better performance.

Super LAN Surge Protection

Super LAN Surge Protection, providing LAN with more advanced antistatic protection capabilities by adding an integrated chip to strengthen electrical stability and prevent damage from lightning strikes and electrical surges.

PCI-e M.2 16Gb/s

PCIe M.2 16Gb/s is the latest storage interface, it delivers the highest bandwidth and lower latency. It’s 1.6 times faster compared with PCIe M.2 10Gb/s.

HDMI

The new 4K2K resolution enables high-definition image display with four times the resolution of full HD, 4K2K display is faithfully express bright and highly detailed content that fills the entire screen with lifelike images. Enjoying TV shows and movies online such as YouTube or Netflix through HDMI connector.

USB 3.2 Gen 1
USB 3.2 Gen1 delivers compelling performance boosts and can be used to connect multiple devices without worrying about compatibility. It is capable of data transfer speeds up to 5Gbps and backward compatible with all existing USB products.
 In conclusion, BIOSTAR A10N-9630E motherboard is a great choice for consumers who look to upgrade their office workstation to a small sleek performance-based system and is guaranteed to provide high-end performance on an affordable package with BIOSTARS world class product quality and support that has proven time and time again as one of the best motherboard manufacturers in the industry.

Spec table:

Chipset

AMD Bristol Ridge

CPU SUPPORT

AMD A10-9630P

(Quad core 2.6GHz up to 3.3GHz)

MEMORY

Supports Dual Channel DDR4 2133 / 2400

2 x DDR4 DIMM Memory Slots

Max. Supports up to 32GB Memory

Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8/ 16 GB DDR4 module

*Please refer to www.biostar.com.tw for Memory support list.

INTEGRATED VIDEO

AMD Radeon™ R5 Graphics

Supports HDCP

STORAGE

2 x SATA III Connectors (6Gb/s)

1 x M.2 (M Key) Connector: Supports PCI-E 3.0 x2 (16Gb/s) and SATA III (6.0Gb/s) SSD

*When PCIE-M2_1 slot is occupied, the SATA2 connector will be disabled.

LAN

Realtek RTL 8111H-10/ 100/ 1000 Mb/s Controller

Supports Super LAN Surge Protection

CODEC

ALC887 7.1-Channel

Supports HD Audio

USB

4 x USB 3.2 Gen1 ports (2 on rear I/Os and 2 via internal headers)

4 x USB 2.0 ports (2 on rear I/Os and 2 via internal headers)

EXPANSION SLOT

1 x PCI-E 3.0 x16 Slot

REAR I/O

1 x PS/2 Mouse

1 x PS/2 Keyboard

1 x VGA Port

1 x HDMI Port

1 x LAN Port

2 x USB 3.2 Gen1 Ports

2 x USB 2.0 Ports

3 x Audio Jack

INTERNAL I/O

2 x SATA III 6Gb/s Connectors

1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

1 x USB 3.2 Gen1 Header (each header supports 2 USB 3.2 Gen1 ports)

1 x 4-Pin Power Connector

1 x 24-Pin Power Connector

1 x CPU Fan Connector

1 x System Fan Connector

1 x Front Panel Header

1 x Front Audio Header

1 x Clear CMOS Header

1 x Serial Port Header

H/W MONITORING

CPU / System Temperature Monitoring

CPU / System Fan Monitoring

Smart / Manual CPU Fan Control

System Voltage Monitoring

DIMENSION

Mini ITX Form Factor Dimension: 17 cm x 17 cm ( W x L )

OS SUPPORT

Windows 7(32/64bit) / 10(64bit)

*BIOSTAR reserves the right to add or remove support for any OS with or without notice.

ACCESSORIES

2 x SATA Cables

1 x I/O Shield

1 x DVD Driver

1 x Quick Guide
