FX-3810: An All-purpose Open Compute Network Powerhouse

The release of Lanner’s FX-3810, a 3U rackmount network appliance built with Intel® Xeon® processor, featuring Open Compute capability.
Lanner’s carrier-class FX Series offers high-performance and Open Compute appliances designed to meet the demands of today’s telecommunication and data center deployment scenarios. The FX-3000 Series appliances offer specs made for cloud computing, storage gateway, video infrastructure and cyber intelligence.
The FX-3810 is powered by dual Intel® Xeon® E5-2600 v3/v4 processors and can be configured with up to 128GB of DDR4 2133/2400 MHz REG DIMM; it comes with 1x GbE RJ45 LAN port, 1x RJ45 IO interface port, 1x OPMA slot and 1x RJ45 console port.
As an Open Compute appliance, the FX-3810’s 4x PCI-E*16 FH/HL and 2x PCI-E*8 FH/HL can be leveraged for enabling network capabilities intended for various applications, most notably storage for hybrid or hot/cold data, data crypto/compression, video encoding/transcoding, and network acceleration.
What’s more, it is equipped with dual 2.5” HDD/SSD external bays and 1x onboard mSATA slot. Last but not least, the FX-310 features 8x hot-swappable cooling fans and 1100W 1+1 ATX redundant power supply units.
Another member of the FX-3000 Series is the FX-3710, a high-performance 3U rackmount cloud storage appliance powered by Intel® Xeon® processor E5-2600 series, featuring 10 cores of processing power and dual main boards, each supporting up to 512GB of quad-channel DDR3 1066/1333/1600MHz memory.

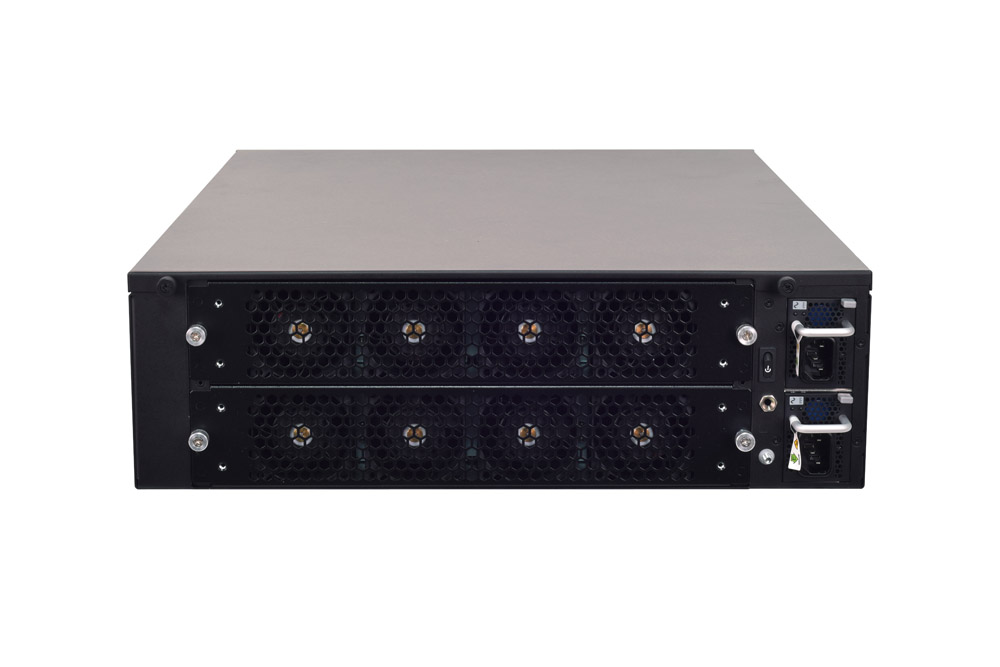

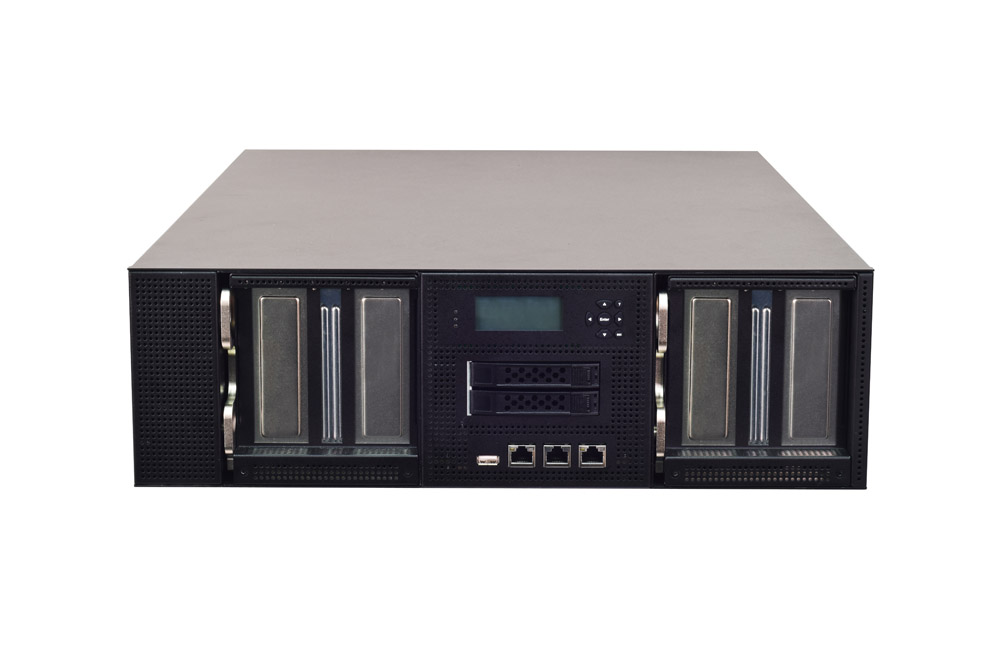

FX-3810
3U Rackmount Network Appliance Built with Intel® Xeon® E5-2600 v3/v4 Processor
  •   Intel® Xeon® E5-2600 v3/v4 Processor
  •    Max. 128GB DDR4 2133/2400 MHz REG DIMM
  •    4x PCI-E*16 FH/HL, 2x PCI-E*8 FH/HL
  •    1x GbE RJ45 Intel® 82574L LAN Port, 1x RJ45 IO Interface
  •    2x 2.5” HDD/SSD External Bays, 1x mSATA Onboard Slot, OPMA Slot, 1x RJ45 Console
  •    8x Hot-swappable Cooling Fans
