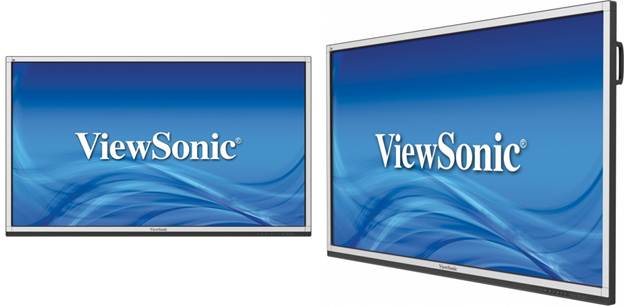

ViewSonic CDE7561T Interactive Flat Panel

ViewSonic has recently launched  ViewSonic CDE7561T Interactive Flat Panel.

SPECIFICATIONS
LCD PANEL Panel Size : 75″
Type/Tech : TFT LCD Module with LED Backlight
Display Area : 1650.24(H) x 928.26(V) (75.0” diagonal)
Aspect Ratio : 16:9
Native Resolution : 1920 x 1080
Colors : 16.7 million colors (8bits-True)
Brightness : 350 nits (typ.)
Contrast Ratio : 5000:1 Typ.
Response Time : 5ms
Viewing Angles : H = 178, V = 178 typ.
Backlight Life : 30,000 Hours Typ.
Surface Treatment : Anti-Glare coating (7H)
Orientation : Landscape
TOUCH Type/Tech : IR Recognition
Touch Resolution : 32767 x 32767
Touch Point : 20 points touch, 10 points writing
INPUT HDMI : x3
RGB / VGA : x3
Audio : x3 PC audio(3.5 mm)
CVBS : x1
RS232 : x1
OPS : PC Slot (proprietary)
OUTPUT RGB / VGA : x1
Audio : x1 Earphone Out
SPIDF : x1
LAN RJ45 : x1
USB Type A : x3 (USB 2.0 including 2 USB ports in front), x1 (USB 3.0)
Type B : x1 (for touch)
SPEAKERS 10Wx2
COMPATIBILITY RGB PC/HDMI PC : Up to 1920×1080 @60Hz. Refer to timing table (RGB PC)
CVBS : 480i
HDMI : 480i, 480p,720p, up to 1080p
EMBEDDED LINUX OS 4.2.1
BUNDLE SOFTWARE ViewBoard Lite, ViewBoard 2.1
USB SUPPORTED FILE FORMAT Picture – JPEG, BMP, PNG
Video – Codec: MPEG1, MPEG2, MPEG4, H.264, Xvid
Container: MPG, MPEG, MP4, MKV, TS, TP, TRP, VOB, AVI, RM, RMVB, MOV , DAT, FLV, WMA, WMV
Audio – Codec: MPEG1 layer2, MPEG1 layer3, AAC, AC3, PCM
Container: MP3, WAV, M4A
POWER Voltage : 100-240VAC +/- 10% Wide Range
Consumption : 296W (Typ.) <0.5W (“Off”)
ERGONOMICS Wall Mount (VESA ) : 800 x 400
OPERATING CONDITIONS Temperature (º C) : 0°C to 40°C
Humidity : 10% ~ 90% non-condensing
DIMENSIONS (W X H X D) Physical (inch / Mm) : 69.4 x 41.8 x 3.9 inch/ 1763 x 1062 x 100mm
WEIGHT Net (lb / Kg) : 132.28lb / 60kg
REGULATIONS FCC, uTUVus, RCM
PACKAGE CONTENTS VGA cable(5 meters) / Power cable(3 meters) x 4 / Remote control / USB cable(5 meters) / Audio cable(5 meters) / Touching pen x 3 / User manual CD wizard / RS232 adapter
