NCA-5710: Enabling Exceptional Virtualization Performance with Dual Intel® Skylake-SP CPUs

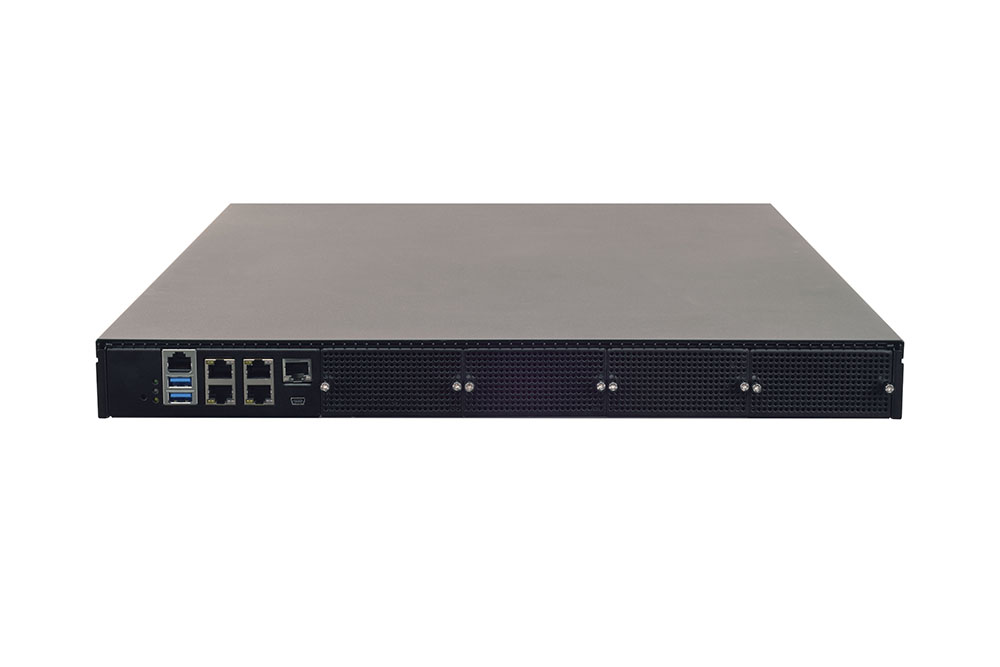

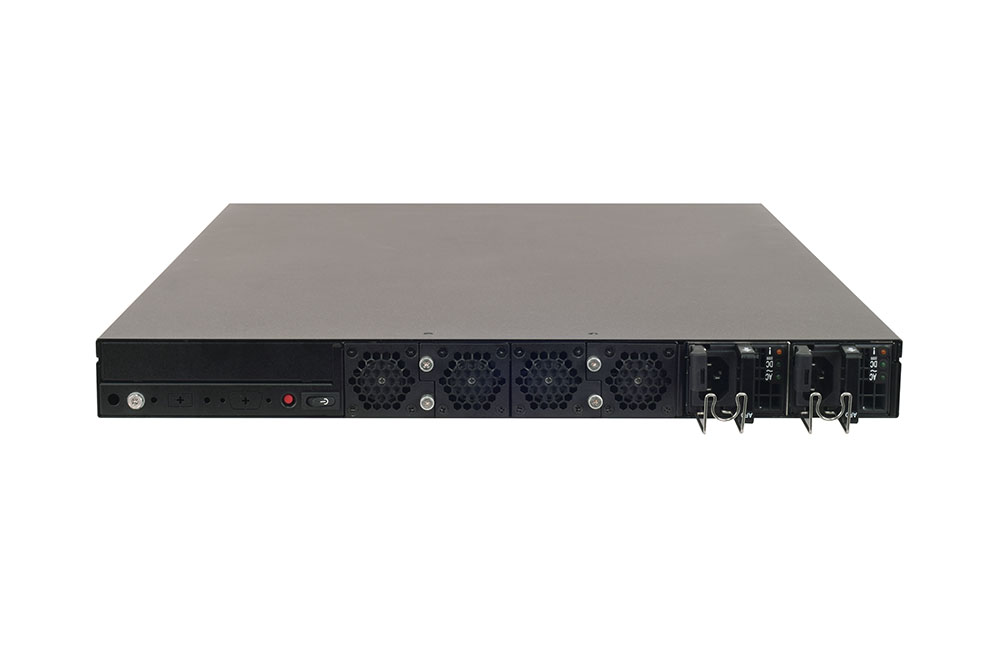

Today sees the release of Lanner’s NCA-5710, a 1U rackmount network appliance built with Intel® Xeon® Processor Scalable Family (Codenamed Skylake-SP) and dual LGA3647 CPU sockets.

The introduction of the NCA-5710 is a response to network service providers’ demand for more agile and flexible methods for delivering exceptional virtualization performance for network computing; the NCA-5710, featuring optimized computing power and virtualization capacity in a 19” 1U form factor with high-port density, is the ideal solution for such requirements.

NCA-5710 is powered by Intel®’s Xeon® Processor Scalable Family and Intel® C627 or C621 chipset, delivering dual CPU performance and advanced networking features, including Intel® QuickAssist Technology, new Intel® AVX-512 instructions, Intel® Hyperscan and Data Plane Development Kit (DPDK).

With support for up to 384GB DDR4 system memory at 2666 MHz, the NCA-5710 greatly maximizes packet processing efficiency for virtual network functions, cryptography acceleration for deep packet inspection and many next-generation firewall and UTM/IPS/IDS applications.

For optimal networking tasks, the NCA-5710 comes with dual LGA3647 CPU sockets and can be configured with either 4x GbE RJ-45 or 4x 10G SFP+ ports. The LAN expansion is made possible by way of its 4x NIC module slots that offer support for 10G/25G/40G/100G fiber/copper/bypass specifications, such versatility and scalability makes NCA-5710 the perfect hardware solution for enhancing network traffic management and virtualized network security.

Other outstanding features include dual console ports (RJ45 c& mini-USB), dual USB 3.0 ports, 6x individual swappable fans, dual 2.5”HDD/SSD bays, 1x M.2, 850W 1+1 ATX redundant PSUs and optional PCIe*16 FH/HL.


1U Rackmount Network Appliance for Network Traffic Management and Virtualized Network Security

  • Intel® Xeon® Processor Scalable Family (Codenamed Skylake-SP) with 2x LGA3647 CPU Sockets

  • 4x 10G SFP+ Lewisburg Internal MAC or 4x RJ45

  • 12x 288pin DDR4 2666 MHz REG DIMM, Max. 384GB

  • 1x RJ45 and 1x Mini USB Consoles, 2x USB 3.0, 4x NIC Module Slots

  • 6x Individual Swappable Fans, 850W 1+1 ATX Redundant PSUs

  • 2x 2.5” Internal HDD/SSD Bays, 1x M.2

  • Intel® QuickAssist Technology (By SKU)
