NCA-5520: Delivering Optimal Network Computing and Virtualization Performance

Lanner provides a security gateway appliance, NCA-5520 The introduction of the NCA-5520 is a response to network service providers’ demand for more agile and flexible methods for delivering satisfying network computing performance while saving ownership costs; the NCA-5520, featuring optimized computing power and virtualization capacity in a compact 1U form factor with high-port density, is the ideal solution for such requirements.

NCA-5520 is powered by Intel®’s Xeon® Processor Scalable Family and Intel® C626 or C621 chipset, delivering advanced networking features, including Intel® QuickAssist Technology, new Intel® AVX-512 instructions, Intel® Hyperscan and Data Plane Development Kit (DPDK). With its support for up to 384GB DDR4 system memory at 2666 MHz, the NCA-5520 greatly maximizes packet processing efficiency for virtual network functions, cryptography acceleration for deep packet inspection and many next-generation firewall and UTM/IPS/IDS applications.

For optimal networking tasks, the NCA-5520 comes with either 4x GbE RJ-45 or 4x 10G SFP+ ports. The LAN expansion is made possible by way of its 4x NIC module slots that offer support for 10G/25G/40G/100G fiber/copper/bypass specifications, such versatility and scalability makes NCA-5520 the perfect hardware solution for enhancing network traffic management and virtualized network security.

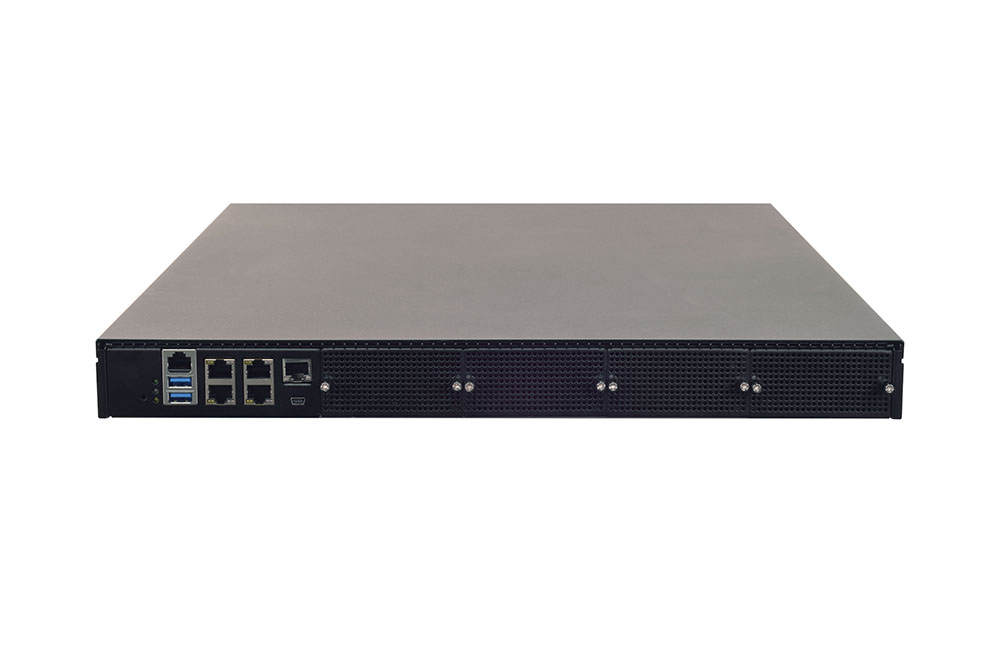

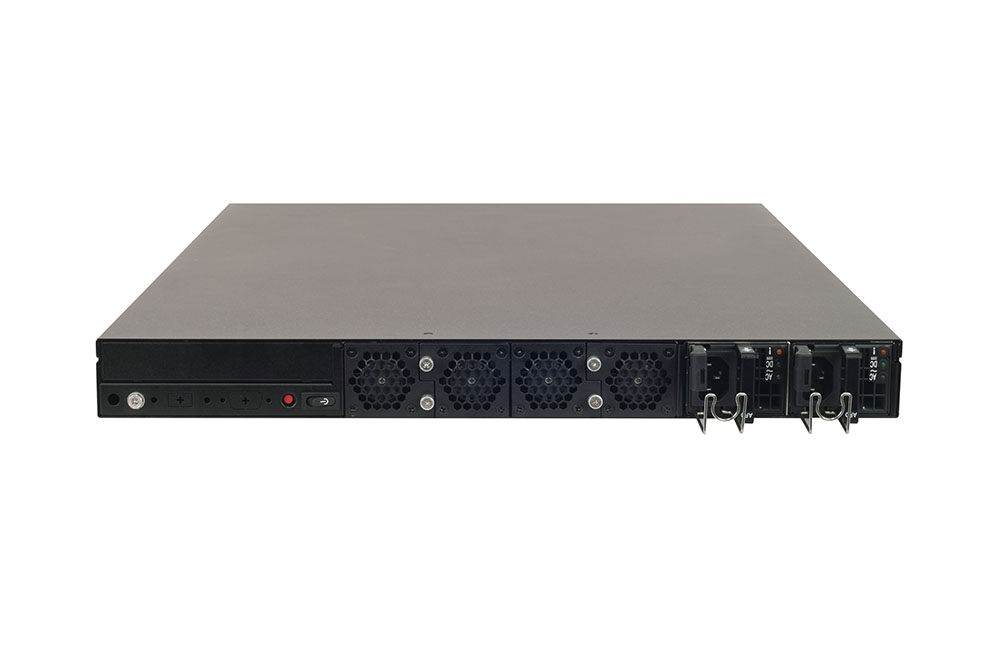

Other outstanding features include dual console ports (RJ45 c& mini-USB), dual USB 3.0 ports, 4x swappable fans, dual 2.5”HDD/SSD bays, dual PSUs and optional PCIe*16 FH/HL.


Security Gateway Appliance for Network Traffic Management and Virtualized Network Security

l Intel® Xeon® Processor Scalable Family (Codenamed Skylake-SP)

l 4x GbE RJ45 or 4x 10G SFP+ Lewisburg Internal MAC

l 12x 288pin DDR4 2666 MHz REG DIMM, Max. 384GB

l 1x RJ45 and 1x Mini USB Consoles, 2x USB 3.0

l Intel® QuickAssist Technology (By SKU)

l 4x NIC Module Slots, 4x Swappable Fans, Dual PSUs
