Lanner Introduces Next-Generation Fanless Desktop FW-7526 for Entry-level UTM, Firewall, VPN And SDN-based CPE

The trend of cloud computing presents an opportunity to replace physical CPE (Customer Premises Equipment) image002 (11)with virtualized, software-defined CPE in order to establish flexible branch-to-cloud connections. Over the past few years in the industry, many enterprises have implemented virtual branch network by focusing on virtualized network services. In other words, virtual machines are replacing physical equipments to assure branch network connectivity while saving hardware costs. Therefore, Lanner has launched its next-generation desktop appliance FW-7526 featuring Intel Atom C2358/C2518 CPU, Intel QuickAssist Crypto Acceleration, 4 x RJ-45 GbE, 2 x SFP GbE, LAN bypass, Intel AES-NI and up to 16GB DDR3 memory.

Lanner’s FW-7526 is driven by Intel Atom C2358 or C2518 CPU (dual-core or quad-core), ideal for entry-level UTM, firewall, VPN and virtual CPE in small-medium enterprise settings due to its low power consumption and steady performance. The platform is accompanied by Intel QuickAssist Crypto Acceleration technology for cryptographic boost. In addition, the processor is built in with Intel AES-NI (Advanced Encryption Standard – New Instruction) to further enhance the network data encryption for higher security level.

Functioning as a virtual CPE, FW-7526 comes with four RJ-45 GbE ports and two SFP GbE ports for network connections. The device also features one pair of Lanner’s Gen2 LAN bypass for network traffic reliability.

Memory wise, FW-7526 supports up to 16GB DDR3 memory. Regarding other I/O connectivity, the device features 1 x mini-PCIe slot with SIM reader, mSATA storage socket, 1 x console and 2 x USB ports. In addition, FW-7526 supports nano-SIM card for wireless 3G/4G/LTE network.

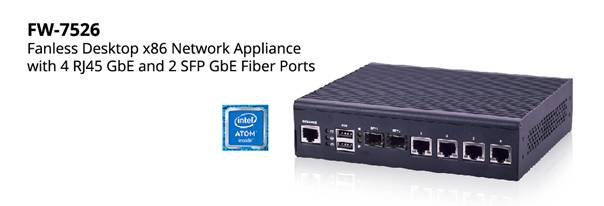

FW-7526
Fanless Desktop x86 Network Appliance with 4 RJ45 GbE and 2 SFP GbE Ports

Intel Atom processor dual-core C2358 or quad-core C2518 (Codenamed Rangeley)

Fanless design

  • 4 x GbE RJ45 and 2 x GbE SFP ports

  • Supports Intel QuickAssist crypto acceleration

  • Includes Intel® AES-NI new instructions

  • Supports up to 16 GB DDR3 memory

  • Intel i210-IS or i354 LAN controller

  • Support 1 pair Gen.2 LAN Bypass

  • 1 x mini-PCIe with SIM slot for wireless expansion

  • Optional rack mounting kit support
