Lanner Expands LEC-6032 Product Family with LEC-6032E, the PoE Version for Critical Infrastructure Surveillance

With the rising incidents of material theft in critical infrastructures, site surveillance has become increasingly important and cameras have been deployed at energy stations, power plants, and other utility production sites. However, owners of critical infrastructures require an all-in-one solution that can integrate the functionality of a cyber security and surveillance to ease the deployment process. Lanner, the global leader in cyber security gateway manufacturing, expands its current LEC-6032 product family with LEC-6032E, the PoE-enabled version for surveillance purpose in critical infrastructures.
LEC-6032E, the new addition of current Lanner LEC-6032 product family, is designed with PoE (Power-over Ethernet) connectivity, allowing the security gateway to connect with IP cameras. Since LEC-6032E comes with four PoE ports, the gateway can be installed with up to four IP cameras. The PoE ports of LEC-6032E are compliant with IEEE 802.3af standards for compatibility under magnetic isolation protection. Therefore, besides the ICS cyber security functionality like all the models in the LEC-6032 family, LEC-6032E also enables surveillance for critical infrastructure sites, designed to respond to the increasing incidents of material theft.
In terms of physical characteristics, LEC-6032E is also built in fanless and compact form factor for deployment purpose, just like all the models in the same product family. The gateway device can be mounted by DIN Rail or wall-mounting method. As a surveillance gateway for critical infrastructure, LEC-6032E supports -20 ºC to +55 ºC operating temperature.
Similar to other models in the LEC-6032 family, LEC-6032E is driven by Intel® Atom™ E3845 1.91 GHz SoC (system-on-chip) for low power consumption and moderate performance. In case of LAN connection failure, LEC-6032E supports one pair of RJ-45 ports with LAN bypass function. The gateway supports both USB 2.0 and USB 3.0 ports for peripheral devices. Due to its open architecture, LEC-6032E is compatible with video analytics software application for auto-detection and event notifications.

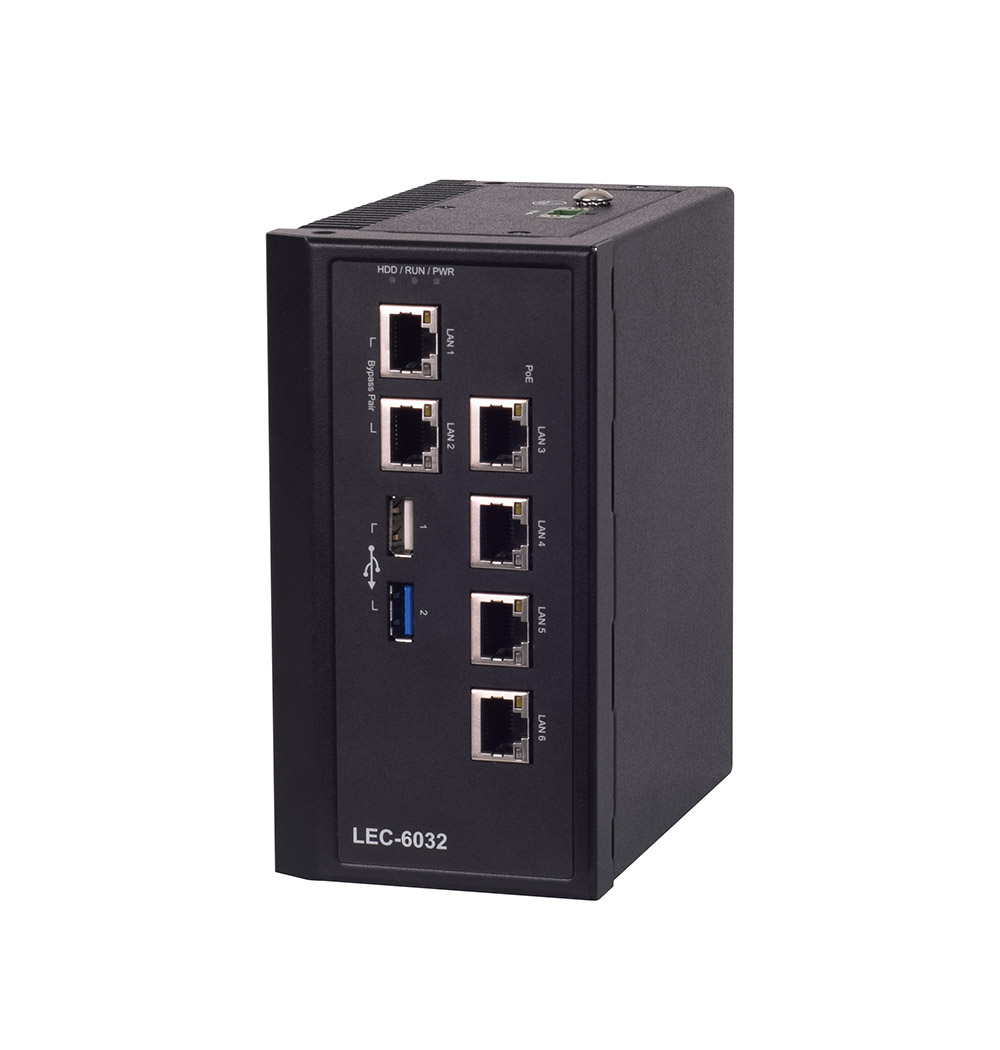

LEC-6032E
Industrial Grade PoE Network Appliance with Intel® Atom™ E3845 Processor
l LEC-6032E_frontFanless industrial grade PoE network appliance
l Intel® Atom™ E3845 1.91GHz SoC CPU
l Wide operating temperature from -20 ºC to 55ºC
l Flexible LAN: 2x GbE + 4 x PoE (IEEE 802.3af)
l 1.5 KV magnetic isolation protection on LAN ports
l One pair Gen.3 LAN bypass
l 1x USB 2.0, 1x USB 3.0
l Support DIN rail and wall mount
