Hikvision Smart Boom Barrier Solutions for Securing Toll Plaza and Housing Complexes

Hikvision India has introduced Smart Boom Barrier Solutions in the market. These new launches include, DS-TMG51X series barrier gate in the premier segment and DS-TMG4BX series barrier gate in the economy segment.

“India’s road infrastructure and highway network are rapidly developing with new toll plazas. The demand is emanating from the housing sector, which requires the state-of-the-art Smart Boom Barrier Solutions in residential housing complexes. Hikvision’s Smart Boom Barrier Solutions are very useful value additions to the premier and economy segments. We are sure these Smart Boom Barrier Solutions are going to add value to the security of Toll Plazas and housing complexes,& quot; said Ashish P. Dhakan, MD and CEO, Prama Hikvision India Pvt. Ltd.

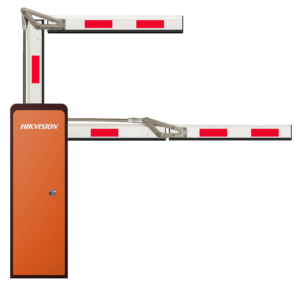

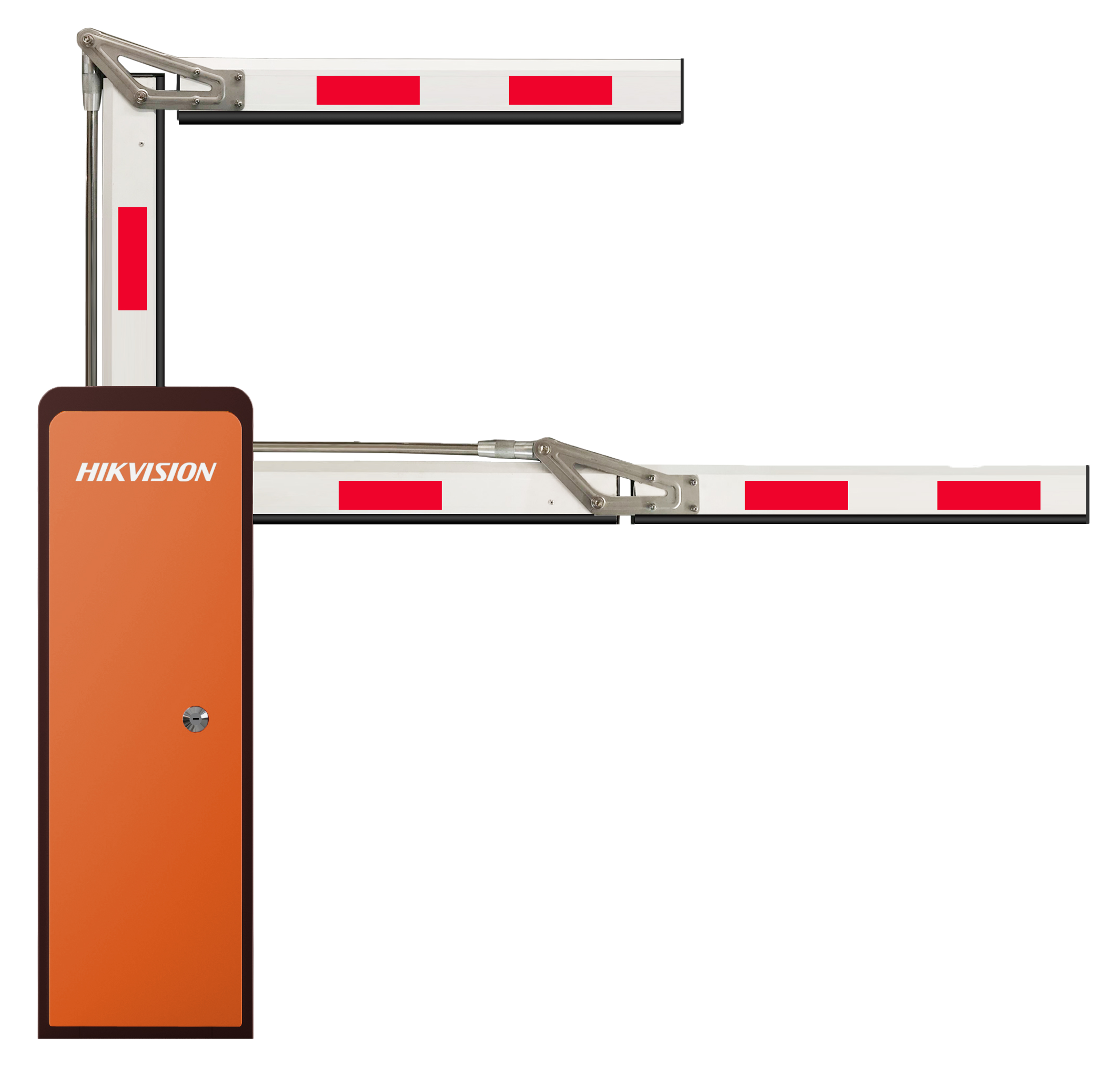

DS-TMG51X series barrier gate is applicable to entrance and exit management. It is widely used in road toll station, parking lot, community, enterprise entrance and exit, etc. to manage the entering and exiting of vehicles and record vehicle passing times. It can be controlled automatically via parking lot management system, or via handle, remote controller, buttons, etc.

The key feature of this Smart Boom Barrier Solution include:

  • DC frequency conversion. The rising and falling speeds can be adjusted
    independently. The boom pole can rise in high-speed to let the vehicle pass
    quickly.
  •  The boom pole can fall in low speed to avoid hitting vehicle and pedestrian.
  • High protection level. The chassis is produced with 2 mm cold rolled steel
    sheets in numerically-controlled precision. The surface is coated with plastic powder which is anti-UV, antistatic, non-peeling, and non-fading.The dustproof and waterproof level conforms to IP54.
  •  Multiple control modes. Rising priority. The boom pole can be controlled
    via relay, remote controller, and software command.
  • Multiple anti-hitting modes via induction, IR, pressure wave, etc.
  • The boom pole direction is adjustable from left to right, or from right to
    left.
  • Anti-condensation. The electric motor is in low consumption even when the
    barrier gate is not in working status, which will keep the motor in normal
    temperature. So even in cold weather, the lube will not be frozen to
    guarantee the normal running of barrier gate.
  • Auto lock. Even when the power is cut off, you can use tool to keep the
    barrier gate working.
  • Embedded with vehicle detector which can cooperate with the coils to
    trigger the boom pole to rise when a vehicle is passing and avoid hitting the
    vehicle.

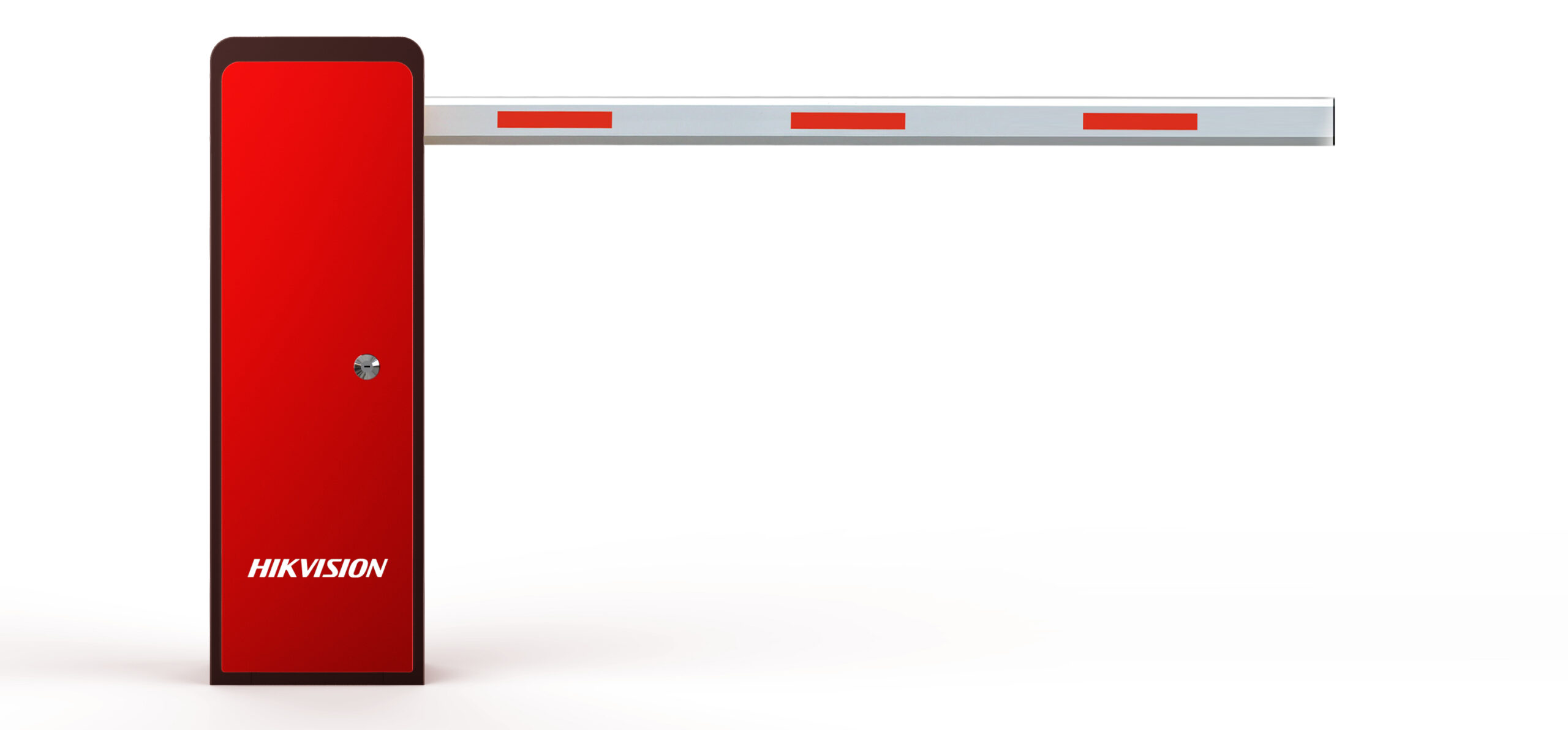

DS-TMG4BX series barrier gate is applicable to entrance and exit management. It is widely used in road toll station, parking lot, community, enterprise entrance and exit, etc. to manage the entering and exiting of vehicles and record vehicle passing times. It can be controlled automatically via parking lot management system, or via remote control.

Its key features include:

  • Hand wheel on motor design. When power fails, rotate the handwheel to
    raise or lower the pole.
  • Three buttons to control the boom pole to rise, fall, or stop.
  • Contactless monitoring with more accurate control and more stable
    running.
  • Multiple interfaces, connectable to IR cable (low level signal input),
    induction, and toll connection system.
  • Simple wiring. No need to arrange or distribute cables.
  • Wireless remote control via 430.5 MHz remote controller.
  • Strong environment adaptability. It can be used safely in -30 °C
    environment.
