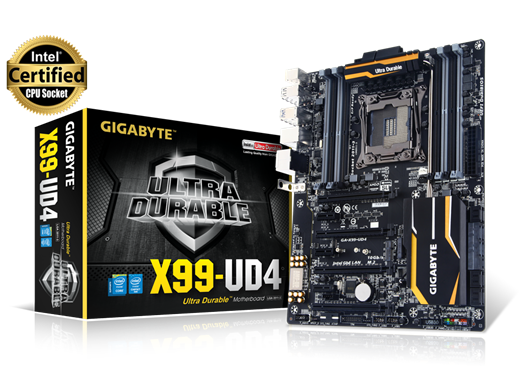

GIGABYTE X99-UD4 – Grand Support for Multiple GPUs, High-speed Storage

The GIGABYTE GA-X99-UD4 motherboard comes with a wide range of features that would delight not only the gamer or the power user, but also the basic or inexperienced PC user.

GA-X99-UD4, based on the Intel X99 Express chipset, is designed for socket LGA2011-v3 processors. These processors presently consist of Core i7 5xxx series CPUs and Xeon E5 1xxx-v3 and E5 2xxx-v3 CPUs. GIGABYTE’s least priced X99 motherboard, GA-X99-UD4 still accommodates all of the extreme performance features of that platform.


Experience up to 320Gb/s Bandwidth

All GIGABYTE X99 motherboards feature a unique PCI Express design that utilizes 100% of all 40 lanes from the CPU when in a 4-Way or 3-Way graphics configuration. Standard designs limit all 4 main PCIe lanes to x8 (64Gb/s) bandwidth, but thanks to the onboard external clock generator combined with the direct connection of one of the x16 lanes to the CPU (switchless design), GIGABYTE X99 motherboards can unlock the full bandwidth available and provide the best graphics bandwidth possible.

The motherboard offers support for up to 4-Way GPU configurations, 8 DDR4 modules, 10 SATA 3 devices or 8 SATA 3 devices and also, a SATA Express device. You also get dual M.2 ports to facilitate greater storage and optional WiFi / Bluetooth cards.

High Quality Audio

 High quality audio is another prominent feature of GA-X99-UD4. While an amplifier chip gives you the stereo output, the motherboard also offers a choicest blend of other augmentations, such as audio-exclusive capacitors. The left and right output channels are divided between diverse PCB layers to reduce crosstalk.

 Advanced Networking Hardware

 GA-X99-UD4 comes with Intel® Gigabit LAN networking, a popular choice with gamers that features several performance-enhancing utlitities, including advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.

Additionally, GIGABYTE X99 series motherboards feature cFos Speed, a network traffic management application which helps improve network latency, maintaining low ping times to deliver better responsiveness in a crowded LAN environment. cFos Speed works in a similar way to an OS driver, monitoring network traffic packets at the application layer, allowing optimization and improved network performance for specific applications.

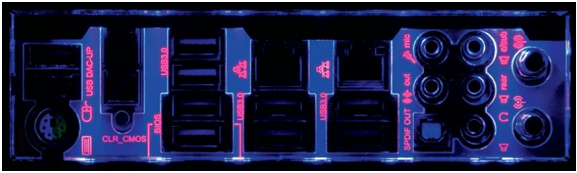

 Ambient LED


GIGABYTE X99 motherboards feature LED lighting for the audio guard light path and the back panel LED, providing a cool, custom look to your rig. These lights are programmable, so you can have them beat to the rhythm of the music you are listening to, or pulse at a soothing pace to create a great atmosphere to enhance the environment of your game, movie or music.

Exclusive BIOS Features

GIGABYTE DualBIOS™, a unique feature in all GIGABYTE motherboards, means this product too has both a ‘Main BIOS’ and a ‘Backup BIOS’, protecting you from BIOS failure due to hardware malfunction, power-related issues, or even virus attack.

GIGABYTE Q-Flash Plus allows users to update to the latest BIOS using a thumb drive without the CPU or memory needing to be installed. With this feature, by simply downloading the latest BIOS and renaming it on a USB thumb drive, and plugging it into the dedicated port, you can now flash the BIOS automatically without the need to press any buttons or even the need of onboard memory or CPU. Utilizing the ITE EC 8951E controller, GIGABYTE X99 motherboard BIOS can be updated even if your system is unable to boot.

Features at a Glance – GA-X99-UD4
• Supports New Intel® Core™ i7 Processor Extreme Edition
• 4 Channel DDR4, 8 DIMMs
• Genuine All Digital Power Design with IR Digital PWM & IR PowIRstage® ICs
• 4-Way Graphics with Premium PCIe Lane
• Dual M.2 Technology for SSD Drive and WIFI card
• 6x(30µ) Gold Plating for CPU socket, Memory DIMMs and PCIe slots
• Realtek ALC1150 115dB SNR HD audio with built-in Rear Audio Amplifier
• Independent Right and Left Audio Channel PCB Layers
• LED lighting for the audio guard light path and the back panel LED
• All Stainless Steel connectors on rear panel
• High end quality audio capacitors
• SATA Express support for up to 10 Gb/s data transfer
• Long lifespan Durable Black™ Solid caps
• APP Center including EasyTune™ and Cloud Station™ utilities
• Thunderbolt™ Ready
• GIGABYTE UEFI DualBIOS™ with Q-Flash Plus USB port
• Safer design around screw mounting holes

Price: Rs. 29,000 (approximately)
Warranty: 3 years
Get more information on GA-X99-UD4 at:

Other GIGABYTE X99 motherboards being launched in India:
GA-X99-SOC Force:
