ECS Presents Latest LIVA Lineup for Digital Signage Solutions at InfoCommUSA2022

[Taiwan-Taipei] Elitegroup Computer Systems (ECS), the global leading motherboard, mini PC, notebook, mobile device, and smart solution provider, is delighted to announce our participation at InfoComm USA 2022 at the Las Vegas Convention Center , Booth No.N1162, from June 8 to 10. ECS will be showcasing its latest LIVA Mini PC series.

LIVA Mini PCs –Versatile & Capable for All Applications

The entire LIVA Mini PC family – including the pocket-sized Q series, multi-functional Z series, and ultra-powerful One series – is ideal for wide-ranging applications. These applications include smart retail, smart transportation, digital signage for hotels and hospitals, video conferencing for business, intelligent edge computing for AI solutions, and home computing for remote work and education.

The world’s smallest mini PC, theLIVA Q3 Plus, is smaller than a mouse yet it features a powerful 15W AMD Ryzen™ V1605B or R1505G APU. Eye-catching 4K graphics support dual display to expand the desktop workspace for unlimited multitasking.

Retailers who need a compact system for tiny commercial spaces can get the performance and flexibility needed for intensive AR workloads and dazzling indoor or outdoor displays.

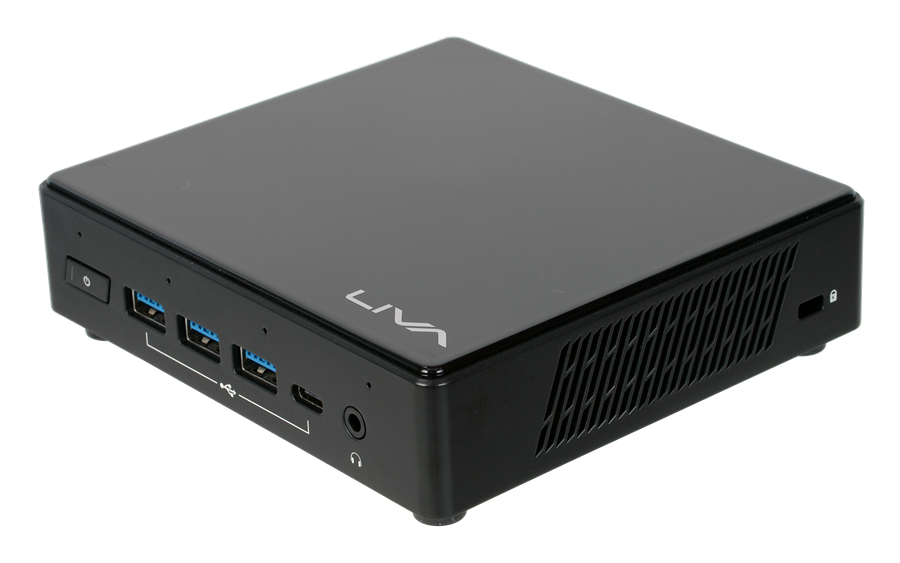

The LIVA Z3 and Z3E are more powerful mainstream super mini PCs that are passively cooled.Powerful Intel® Jasper Lake processors offer up to 16GB DDR4 dual-channel memory with an expandable M.2 socket. They are equipped with the latest 802.11ax technology for wireless connections. Supporting 4K dual-screen output via HDMI 2.0 and mini-DisplayPort, they are suitable for remote office, online learning and home entertainment, as well as for smart business applications including digital signage and self-service kiosks.

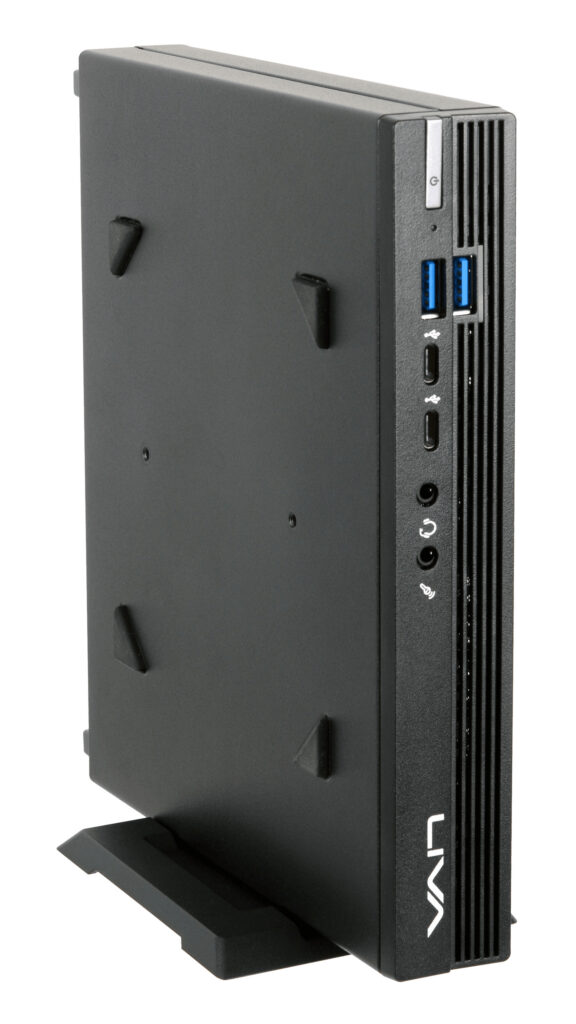

The LIVA One A300 is even more flexible and powerful. Using AMD’s Ryzen™ 3/5/7 & Athlon™ processors with Radeon™ RX graphics, it offers superb performance for work play, or business. It may be configured to meet any demand.

It is offered as barebones or as a full system integration solution with or without an operating system. Users can outfit the LIVA One A300 depending on need, from ultra-efficient dual-core Athlon-class APUs to powerful 8-core APUs with advanced Radeon™ graphics. Its small size, excellent power efficiency, and class-leading graphics excel at retail smart signage in addition to edge computing and augmented reality.

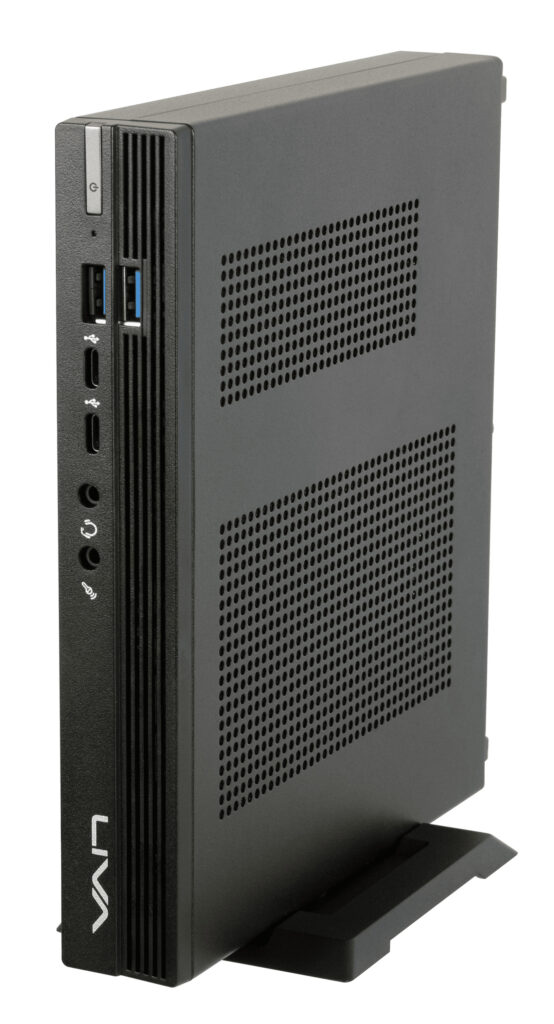

The LIVA One H610 offers even more massive performance in a tiny power-efficient package. Supporting Intel’s® 12th generation 16-core Core-i9® CPUs up to 65W, plus extra-large memory capacity up to 64GB, this compact system is ideal for the most demanding home and office work including research or workstation applications.Using dual-band Wi-Fi 6 or wired Gigabit Ethernet, the LIVA One H610 can act as a thin-client for cloud-based management solutions or for Linux or Windows 11 heavy edge compute demands including AI applications, smart signage, retail intelligence, healthcare, terminals, and gateways.

LIVA AiO- Fits into a More Flexible Workspace

The elegant yet powerful LIVAG24-M AiO provides a highly capable compact system. At just 23.8 inches in size and completely self-contained, it’s ideal for the new work from home culture being able to fit into almost any small space. Full HD resolution display means the images are sharp with room for viewing multiple documents simultaneously.Adjustable tilt and wide viewing angles provide great ergonomics while the 2MP webcam and built-in stereo speakers make it perfect for virtual meetings.

Powered by Intel’s® 12th Generation CPUs, the G24-M can act as a hub for a more comprehensive retail network. With VESA-compatibility, it can be mounted on a wall or wherever customers look for assistance. Using the Windows 11 operating system, it is easy for stores to build amazing interactive interfaces for kiosk operations.

The LIVA G24-M provides superb performance to benefit high-performance computing or for lighter use such as for terminals and gateways.





Model

LIVA One A300 LIVA One H610 LIVA Z3 LIVA Q3 Plus
CPU AMD® Ryzen™ 3/ 5/ 7 & Athlon™ Processors with AM4 Socket (TDP 35W/ 65W Max.) Intel® 12th Gen Processors with LGA1700 Socket (TDP 35W/ 65W Max.) Intel® Pentium® Silver N6000 Processor
Intel® Celeron® N5100/ N4500 Processors
AMD Ryzen™ Embedded V1605B/ R1505G Processors
Memory 2 x SO-DIMMs, DDR4 3200MHz
Up to 64GB
(Memory SPEC will vary depending on CPU.)
2 x SO-DIMMs, DDR4 3200MHz

Up to 64GB

2 x SO-DIMMs, DDR4 2933MHz
Up to 16GB
DDR4 on Board 2400MHz
4GB/ 8GB
Storage 1 x 2.5″ SATA 6Gb/s HDD/ SSD
1 x M.2 2280 SATA/ PCIe x4 Gen 3 SSD
1 x 2.5” SATA 6Gb/s HDD/ SSD

1 x M.2 2280 SATA/ PCIe NVME x 4 Gen3 SSD

eMMC 5.1, Up to 128GB
1 x M.2 2280 PCIe x2 Gen 3 SSD (Optional)
eMMC 64GB/ 128GB
Wireless 1 x M.2 2230 WLAN 802.11ac

1 x M.2 2230 WLAN 802.11ax

1 x M.2 2230 WLAN 802.11ac/ 802.11ax



1 x M.2 2230 WLAN 802.11ac/ ax WLAN 802.11ac
Video Output SKU 1:
1 x HDMI
1 x DisplayPort
1 x VGA
SKU 2:
1 x HDMI
2 x DisplayPort
1 x HDMI (2.0b)

2 x DisplayPort (1.4a)

1 x VGA / RS232 (optional)

(3 Video Outputs Max.)

1 x HDMI
1 x mini DisplayPort
1 x HDMI
1 x mini DisplayPort
Audio 1 x Combo Jack

1 x MIC-in

1 x Combo Jack

1 x MIC-in

1 x Combo Jack HDMI Audio
I/O Front I/O:
2 x USB 3.2 Gen 2×1 Type C
2 x USB 3.2 Gen 1×1
1 x Combo Jack
1 x Mic-In

Rear I/O:
2 x USB 3.2 Gen 1×1
2 x USB 2.0
1 x 2.5 Gigabit LAN
1 x COM (RS-232, Optional)
1 x DC-in
1 x Kensington Lock

Front I/O:

2 x USB 3.2 Gen 2×1 Type C

2 x USB 3.2 Gen 1×1

1 x Combo Jack

1 x Mic-in

Rear I/O:

2 x USB 3.2 Gen 1×1

2 x USB 2.0

1 x 2.5 GbE LAN

1 x DC-in

1 x Kensington Lock

1 x USB 3.2 Gen 2×1 Type-C
3 x USB 3.2 Gen 1×1
2 x USB 2.0
1 x Gigabit LAN
1 x DC-In
2 x USB 3.2 Gen 1×1
1 x USB 2.0
1 x Gigabit LAN
1 x DC-In
1 x Micro SD Card Slot
Dimension 205 x 176 x 33 mm 205 x 176 x 33 mm 117 x 128 x 35 mm 74 x 74 x 52.1 mm
OS Support Windows 11/Linux Windows 11/Linux Windows 11/Linux Windows 10
Power Supply TDP 35W: 19V/ 90W
TDP 65W: 19V/ 120W
TDP 35W: 19V/ 90W

TDP 65W: 19V/ 120W

19V/ 65W 12V/ 36W
Others Support TPM Onboard (Optional)

Support Internal Speaker (Optional)

Support TPM Onboard (Optional)

Support Internal Speaker (Optional)

1 x M.2 2280 for SSD (Key M)
1 x M.2 2230 for Wireless (Key E)
Support HDMI CEC



LIVA G24-M
Screen Size 23.8″
CPU Intel® 12th Gen Processors with LGA 1700 Socket
Motherboard H610H7-TI5
Display Full HD with LED-backlight LCD
Support 10-point Multi-touch (Optional)
178° Wide-viewing Angle
Aspect Ratio 16:9
Graphics Integrated Intel® UHD Graphics
Memory 2 x SO-DIMMs, DDR4 2933 MHz
Storage 1 x 2.5″ SATA 6Gb/s HDD/ SSD

1 x M.2 2280 Slot for SATA/ PCIe Gen 3 SSD

Camera 2MP Webcam
ODD 1 x Slim Optical DVD-RW (Optional)

or 1 x 2.5“ HDD/SSD (Optional)

Audio 2 x 3W Speakers
I/O Side:
2 x USB 3.2 Gen 1×1

2 x Audio Jacks

1 x Card Reader

1 x COM port (Optional)

Rear:
2 x USB 3.2 Gen 2×1
2 x USB 2.0
1 x HDMI 2.0 Out
1 x VGA
1 x Gigabit LAN
2 x Audio Jacks
1 x 19V DC-In

Wireless Wi-Fi 6(802.11ax)
OS Support Windows 11/Linux
Power Supply 120W
