BIOSTAR J3160MD Motherboard Featuring Intel Braswell Refresh SoC Debuts

New processor, new capabilities makes this a small but powerful motherboard

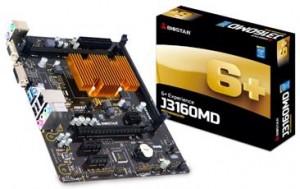

BIOSTAR proudly announces its small yet powerful image008motherboard from the new motherboard featuring integrated Intel Braswell Refresh SoC processors. Featuring the new Celeron J3160 quad-core processor which has clock speeds of 1.6Ghz and has a Turbo clock up to 2.24Ghz, this little machine can deliver unprecedented performance from a SoC-based system. To help improve performance, support for DDR3L-1600 DIMM modules is now possible with a maximum supported capacity of 16GB per slot giving the BIOSTAR J3160MD great memory flexibility.

The latest generation Intel HD graphics is baked into the new BIOSTAR J3160MD featuring peformance improvements over last-gen Intel IGPs. This gives the board excellent performance and support to play 4K UltraHD content and deliver a stunning multimedia experience from a small package.

14nm Processor – Intel’s die-shrink allows the new Braswell Refresh SoC processors to operate with less current while improving performance and allows more clock rate headroom for frequency increases on lower workloads when necessary along with the other technical advantages brought on by the die-size reduction.

Improved HD Graphics – An improved Intel HD Graphics GPU will be baked into the new SoCs which improves unnamed (2)performance for multimedia tasks such as watching HD videos and better desktop graphics for productivity allowing for a richer experience with an increase in execution units to handle today’s more demanding visual processing.

More Memory Bandwidth – Native support for DDR3L-1600 allows the new Braswell Refresh SoCs to access memory at a faster rate for improved system responsiveness. This changes results in up to 40% power savings and double graphics performance. There is also 20% more memory bandwidth in the new DDR3L-1600 versus the old DDR3L-1333, plus twice the speed for storage against the older SoCs.

Support for DVI and USB3.0

The BIOSTAR J3160MD supports both VGA and DVI display output. DVI is a digital output connector that allows 1:1 pixel data to be transferred from your system to the panel for a clearer and more optimal display connection.

USB3.0 allows faster connectivity to modern components and peripherals with support for up to 5Gbps bandwidth and is fully compatible with older USB2.0 devices.

Onboard Intel Celeron J3160 Quad Core processor – featuring four physical cores to handle increased workloads and modern processing demands, this processor features 2MB of cache and has a Turbo clock 2.24Ghz. It features a built-in next-gen Intel HD graphics processor and supports up to DDR3L-1600 memory. All this in a 6-watt thermal envelope.

Charger Booster – this technology lets you charge your Apple devices faster than most devices. This gives you a more efficient and quicker charge time when you connect an Apple device to a BIOSTAR motherboard which can improve charging time up to 42% faster than normal.

BIO-Remote2 Technology – control your system remotely via your mobile device. Enjoy your home theatre with both Apple and Android to let you control your BIOSTAR equipped PC remotely. BIO-Remote2 features extended support to enhance your experience with native touchpad and presenter mode features.

SmartSpeedLAN – this application optimizes your network connection and allows you full control on how to handle the traffic from your PC. You can specify which applications get priority of your network connection giving you increased efficiency in maintaining a smooth experience when gaming or streaming.

BIOSTAR 6+ Experience

The new BIOSTAR PRO Series will carry on the exclusive BIOSTAR 6+ Experience feature set which delivers the best BIOSTAR has to offer: Speed+, Audio+, Video+, Durable+, Protection+ and DIY+.

SPECIFICATIONS

BIOSTAR J3160MD

CPU

Intel® Celeron J3160 Quad-core 2.24G

MEMORY

Support Dual Channel DDR3L 1600/1066 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 8GB Memory for DDR3L-1600 OR 16GB Memory for DDR3L-1066
※The DIMM must be installed to DIMMA1 slot first.

EXPANSION SLOT

1 x PCI-E x16 2.0 Slot(x1)
2 x PCI Slot

STORAGE

2 x SATA3 Connector

USB

2 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Header

LAN

Realtek RTL8111H – 10/100/1000 Controller

INTEGRATED VIDEO

Intel HD Graphics
Supports DX11.1
Supports HDCP

CODEC

Realtek ALC662 6-Channel HD Audio

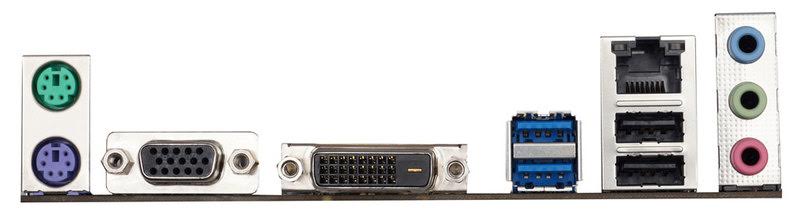

REAR I/O

1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x DVI Connector
1 x VGA Port
1 x RJ-45 Port
3 x Audio Connector

INTERNAL I/O

1 x Printer Header
1 x USB 3.0 Header
2 x USB 2.0 Header
2 x SATA3 6Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
2 x System Fan Header
1 x Serial Header

DIMENSION

Micro ATX Form Factor Dimension: 22.6cm x 18.8cm ( W x L )
