BIOSTAR, a leading manufacturer of motherboards, graphics cards, and storage devices today, unveils the brand new Z590A-SILVER motherboard.

Z590A-SILVER Motherboard
Z590A-SILVER Motherboard

Designed to support Intel’s 10th/11th Generation Intel Core™ Processors and High-end graphics cards, the new Z590A-SILVER motherboard is highly versatile. Powered by Intel’s Z590 single-chip architecture this new motherboard is highly efficient and robust in any use case.

Modern features like PCI-e 4.0 and PCIe M.2 4.0 and other cutting-edge functionality add up to a great platform tailor-made for gaming and content creation. With the support of up to 128 GB of DDR4 memory across 4 DIMM slots and an overclocking capability of up to 5000+(OC) MHz, the Z590A-SILVER motherboard can handle all high-intensive tasks thrown at it.

Z590A-SILVER Motherboard
Z590A-SILVER Motherboard

Backed by BIOSTAR’s proprietary Digital PWM technology and the 14 Phase power design, the new Z590A-SILVER motherboard is safe and long-lasting, capable of supporting the best hardware with ease.

Z590A-SILVER Motherboard
Z590A-SILVER Motherboard

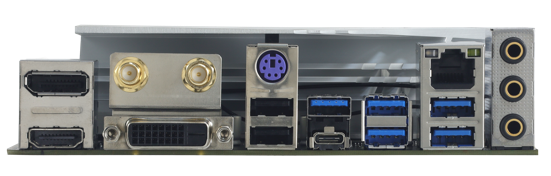

The Z590A-SILVER packs all the essentials in its rear I/O panel. Designed with 8 USB ports consisting of 3 x USB 3.2 (Gen1) Ports, 2 x USB 3.2 (Gen2) Ports, 2 x USB 2.0 Ports and a single USB 3.2 (Gen2x2) Type-C Port. Furthermore, a single 1 x PS/2 Keyboard / Mouse Port provides extra connectivity to connect an older device into the system.

Z590A-SILVER Motherboard
Z590A-SILVER Motherboard

Additionally, 2 x WiFi Antenna ports that support WiFi 6 and a single LAN port powered by Realtek RTL8125B chipset are readily available for faster internet connectivity.

For video output, the motherboard comes with a single DVI-D port, a single DP-Out port in addition to an HDMI 2.0 port capable of supporting up to 4k vivid crystal-clear images. Three powerful audio ports controlled by the ALC1220 chipset provide an immersive audio-visual experience with 7.1 Channels, High-Definition Audio output.

BIOSTAR’s globally renowned product quality carries on with their new Z590A-SILVER motherboard. Engineered with the best features and functionality, this new motherboard brings Reliability, performance, and cutting-edge technology into the hands of consumers making it the best choice for any business or casual use.

Spec Table

Model Z590A-SILVER
Chipset Intel Z590
CPU SUPPORT Support for 10th/ 11th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY Supports Dual Channel DDR4 5000+(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133
4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Each DIMM supports non-ECC 4/ 8/ 16/ 32GB DDR4 module
Support Intel Extreme Memory Profile (XMP) memory modules
* Please refer to www.biostar.com.tw for Memory support list.
STORAGE — Total supports 3 x M.2 socket and 6 x SATA III (6Gb/s) ports
6 x SATA III Connector (6Gb/s) : Supports AHCI, RAID 0, 1, 5, 10 & Intel® Rapid Storage Technology
1 x M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY):
Supports M.2 Type 2280 SSD module
Supports PCIe 4.0 x4 (64Gb/s) – NVMe/ AHCI SSD
Support 11th Gen processor only
1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA_RST_1):
Supports M.2 Type 2260/ 2280 SSD module
Supports PCI-E 3.0 x4 (32Gb/s) – NVMe/ AHCI SSD & SATA III (6Gb/s) SSD
Supports Intel Rapid Storage Technology and Intel Optane Technology
1 x M.2 (M Key) Socket (M2_PCIEG3_32G_RST_2):
Supports M.2 Type 2242/ 2260/ 2280/ 22110 SSD module
Supports PCIe 3.0 x4 (32Gb/s) – NVMe/ AHCI SSD
Supports Intel Rapid Storage Technology and Intel Optane Technology
* M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY) support 11th Gen Rocket Lake-S CPU only.
* When using SATA SSD module on M.2 slot(M2_PCIEG3_32G_SATA_RST_1), the SATA_6 connector will be disabled.
LAN Realtek RTL8125B
10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC1220
7.1 Channels, High Definition Audio, Hi-Fi(Front)
USB 1 x USB 3.2 (Gen2x2) Type-C port (1 on rear I/O)
2 x USB 3.2 (Gen2) ports (2 on rear I/Os)
5 x USB 3.2 (Gen1) ports (3 on rear I/Os and 2 via internal header)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal header)
EXPANSION SLOT 2 x PCIe 3.0 x1 Slot
1 x PCIe 4.0 x16 Slot (x16 mode)
1 x PCIe 3.0 x16 Slot (x4 mode)
* According to different CPUs will have different speeds.
* PCIe 4.0 speed only for INTEL 11th Gen CPUs.
REAR I/O 2 x WIFI Antenna Ports
1 x PS/2 Keyboard/ Mouse Port
1 x HDMI Port (HDMI2.0)
1 x DP Port
1 x DVI-D Port
1 x USB 3.2 (Gen2x2) Type-C Port
2 x USB 3.2 (Gen2) Ports
3 x USB 3.2 (Gen1) ports
2 x USB 2.0 ports
1 x 2.5 GbE LAN port
3 x Audio Jack
INTERNAL I/O 6 x SATA III Connectors (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 4-Pin Power Connector
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x CPU water cooling connector (CPU_OPT)
3 x System Fan Connectors
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
1 x Thunderbolt 3 Header
2 x LED Headers (5V)
1 x LED Header (12V)
* M.2 (E key) Wi-Fi card is not provided
DIMENSION ATX Form Factor Dimension: 30.5 cm x 24.4cm ( W x L )
OS SUPPORT Supports Windows 10(64bit) / 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice.
ACCESSORIES 4 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
