AC Series 750Mbps Router For Your RJ 11 And RJ 45 Internet Line From TP-LINK

TP-LINK added a clam shell design to its range of Archer Series Router by introducing Archer D20 in India

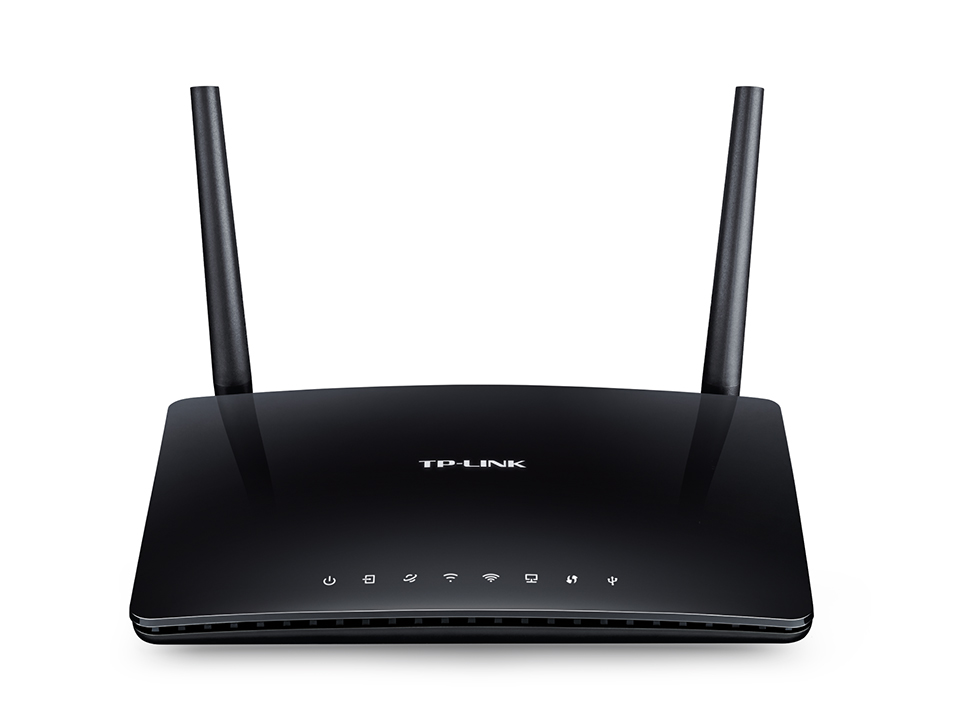

TP-LINK, a global provider of networking products Archer_D20_un_V1_1003_large_0_20150530152710launches Archer D20 (AC750 Wireless Dual Band ADSL2+ Modem Router), coming with an elegant look and clam shell design with two external antennas Archer D20 is designed to complement your interior decoration and is made to camouflage with your home design.

Coming with the next generation Wi-Fi standard – 802.11ac, 3 times faster than wireless N speeds in a single stream, Archer D20 delivers a combined wireless data transfer rate of up to 750Mbps with 300Mbps over 2.4GHz and 433Mbps over 5GHz. 802.11ac also brings higher power efficiency and robust security, making Archer D20 a perfect hub for your home or small office, which translate to better connectivity and multitasking devices plus utilizing all the Internet data you have. Dual band connection works as a charm on Archer D20 by giving a justified connection to your devices.

USB Storage on Archer D20 is blessing for those who need to access their hard-disk or printer wirelessly from any corner of their home. So no more hassle to give out a simple printout or no need to worry on connecting USB drive to your Laptop or mobile just wirelessly access it through your convenience.

The Archer D20 supports ADSL and Ethernet WAN connections, providing you with the flexibility you need to get the most from your Internet connection. The ADSL port supports ADSL connections via any standard phone cable and the LAN/WAN port allows the Archer D20 to accept connections from fiber/cable modems using an Ethernet cable.

TP-LINK Tether app provides the easiest way to access and manage your router with your iOS or Android devices. From setup to parental control, Tether provides a simple, intuitive user interface to see what the status of your router is, who’s online and what their privileges are. More models of the router can be configured with TP-LINK Tether. That means everything about your router in your hand.

Price & Availability:
Archer D20 will be available in all markets from 18-Nov-2015 for Rs 4999 INR.

Features:

• Supports 802.11ac standard – the next generation of Wi-Fi
• Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections provide a premium wireless experience
• Share a printer locally and files & media with networked devices or remotely via FTP server
• Ethernet WAN (EWAN) port accepts connections from cable and fiber modems via Ethernet cable
• New web UI and Tether APP provide quick & hassle-free installation and easy management

Specification:

HARDWARE FEATURES

Interface

1 10/100Mbps RJ45 WAN/LAN Port
3 10/100Mbps RJ45 LAN Ports
1 RJ11 Port
1 USB 2.0 Port

Button

1 Power On/Off Button
1 Wi-Fi On/Off Button
1 WPS/RESET Button

External Power Supply

12VDC/1.5A

IEEE Standards

IEEE 802.3, 802.3u

ADSL Standards

Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT), ITU-T G.994.1 (G.hs),

ITU-T G.995.1

ADSL2 Standards

ITU-T G.992.3 (G.DMT.bis)

ADSL2+ Standards

ITU-T G.992.5

Dimensions ( W x D x H )

8.0 x 5.6 x 1.3 In. (202 x 141 x 33.7mm)

Antenna Type

2 external fixed antennas



WIRELESS FEATURES

Wireless Standards

IEEE 802.11b/g/n 2.4GHz
IEEE 802.11a/n/ac 5GHz

Wireless Speeds

2.4GHz: Up to 300Mbps
5GHz: Up to 433Mbps

Frequency

2.4GHz and 5GHz

Transmit Power

<20dBm(EIRP)

Wireless Functions

Enable/Disable Wireless Radio, WDS Bridge,

WMM, Wireless Statistics

Wireless Security

64/128-bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK encryption,

Wireless MAC Filtering

Wireless Schedule

Support 2.4GHz and 5GHz Wireless Schedule



SOFTWARE FEATURES

Quality of Service

ATM QoS, Traffic Control(IP QoS)

Security

NAT Firewall, Access Control,

MAC / IP / URL Filtering,
Denial of Service (DoS), SYN Flooding,

Ping of Death
IP and MAC Address Binding

IPv6

IPv6 and IPv4 dual stack

Operating Modes

ADSL Modem Router, Wireless Router

Management

Web Based Configuration(HTTP),

Remote management,
Command Line Interface,
SSL for TR-069, SNMP v1/2c,

Web Based Firmware Upgrade, Diagnostic Tools

DHCP

Server, Client, DHCP Client List,
Address Reservation, DHCP relay

SOFTWARE FEATURES

Port Forwarding

Virtual server, Port Triggering, DMZ, ALG, UPnP

Dynamic DNS

DynDns, NO-IP

VPN Pass-Through

PPTP, L2TP, IPSecPassthrough

ATM/PPP Protocols

ATM Forum UNI3.1/4.0,
PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516),
IPoA (RFC1577/2225),
MER\IPoE (RFC 1483 Routed)
Bridge (RFC1483 Bridge)
PVC – Up to 8 PVCs

Advanced Features

Parental Control
Network Address Translation (NAT);
Port Mapping (Grouping), Static Routing,

RIP v1/v2 (optional);
DNS Relay, DDNS, IGMP V1/V2/V3

USB Sharing

Support Samba(Storage)/FTP Server/Media Server/

Printer Server

Guest Network

2.4GHz guest network × 1
5GHz guest network × 1

IPSec VPN

Supports up to 10 IPSec VPN tunnels



OTHERS

Certification

CE, FCC, RCM, RoHS

Package Contents

AC750 Wireless Dual Band ADSL2+ Modem Router
External Splitter
RJ-11 Telephone Cable
RJ-45 Ethernet Cable
Quick Installation Guide
Power Adapter

Box Dimensions (W X D X H)

8.0 x 5.6 x 1.3 In. (202 x 141 x 33.7mm)

System Requirements

Windows 8.1/8/7/Vista/XP or Mac OS or

Linux-based operating system

Others

System Requirements

Windows 8.1/8/7/Vista/XP or Mac OS or

Linux-based operating system

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
